MCCB 3 Phase 32 Ampere 3p 32a Breaker Schneider NSX100F TM32D Original

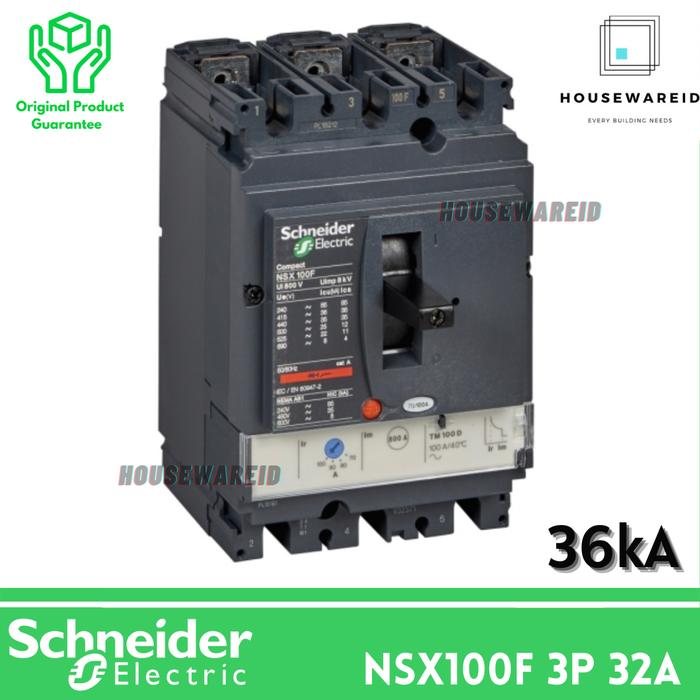

MCCB Schneider ComPact NSX100F 3 Phase 32 Ampere
Spesifikasi :
- Tipe : LV429635
- Device Application : Distribution
- Poles Description : 3P
- Number of Protected Poles : 3
- Network Type : AC
- Network Frequency : 50/60 Hz
- Performance Level : F 36kA 415V AC
- [In] Rated Current : 32 A at 40°C
- [Ue] Rated Operational Voltage : 690 V AC 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage : 8 kV
- ##############################
- [Icu] Rated Ultimate Short-circuit Breaking Capacity :
- ~10 kA at 600 V AC 50/60 Hz conforming to UL 508
- ~25 kA at 480 V AC 50/60 Hz conforming to UL 508
- ~85 kA at 240 V AC 50/60 Hz conforming to UL 508
- ~22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
- ~25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
- ~35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
- ~36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
- ~8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
- ~85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
- ##############################
- Control Type : Toggle
- Circuit Breaker Mounting Mode : Fixed
- Mounting Support : Backplate
- Upside Connection : Front
- Downside Connection : Front
- Height : 161mm
- Width : 105mm
- Depth : 86mm
- Mechanical Durability : 50.000 Cycles
- Standards : EN/IEC 60947

Produk Original Schneider Electric Indonesia. ( SNI )

Sebelum memesan harap bertanya terlebih dahulu tentang ketersediaan barang ( CHAT )
