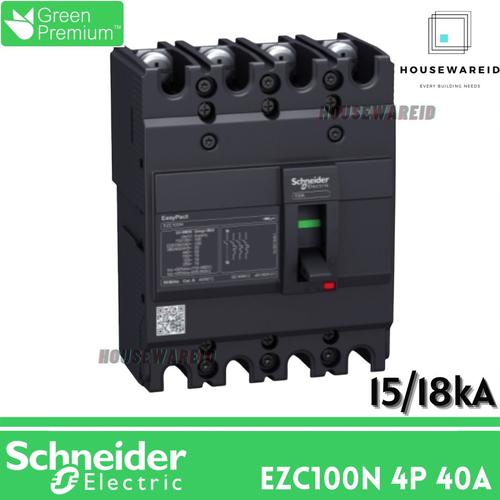

MCCB Schneider 4p 40a EZC100N4040 Original / MCCB 4 Phase 40 Ampere

MCCB Schneider Easypact EZC100N 4 Phase 40 Ampere
Spesifikasi :
- Tipe : EZC100N4040
- Product or component type : Circuit Breaker
- Device Application : Distribution
- Poles Description : 4P
- Number of Protected Poles : 3t
- Network Type : AC & DC
- Network Frequency : 50/60 Hz
- [In] Rated Current : 40 A at 40°C
- [Ui] Rated Insulation Voltage : 690 V AC 50/60 Hz conforming to IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage : 6 kV conforming to IEC 60947-2
- Breaking Capacity :
~10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
~25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
~25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
~5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
~5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
~5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
~15 kA Icu at 415 V AC 50/60 Hz conforming to IEC 60947-2
~18 kA Icu at 380...400 V AC 50/60 Hz conforming to IEC 60947-27-2
- Control Type : Toggle
- Mounting Mode : Fixed
- Mounting Support : Backplate
- Mechanical Durability : 8500 cycles
- Height : 130mm
- Width : 100mm
- Depth : 60mm

Produk Original Schneider Electric Indonesia. ( SNI )

Sebelum memesan harap bertanya terlebih dahulu tentang ketersediaan barang ( CHAT )

Atau bisa tanya-tanya via WA : 08111 597 596 jangan ragu-ragu langsung Chat saja kami Kirana HousewareID akan selalu bersedia membantu anda.
