Mesin Pengolah Air Payau Brackish Water Desalination Kusatsu - KBWRO-6000LPH

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barangnya dan kami akan mengirimkan barang pesanan anda secepat mungkin.

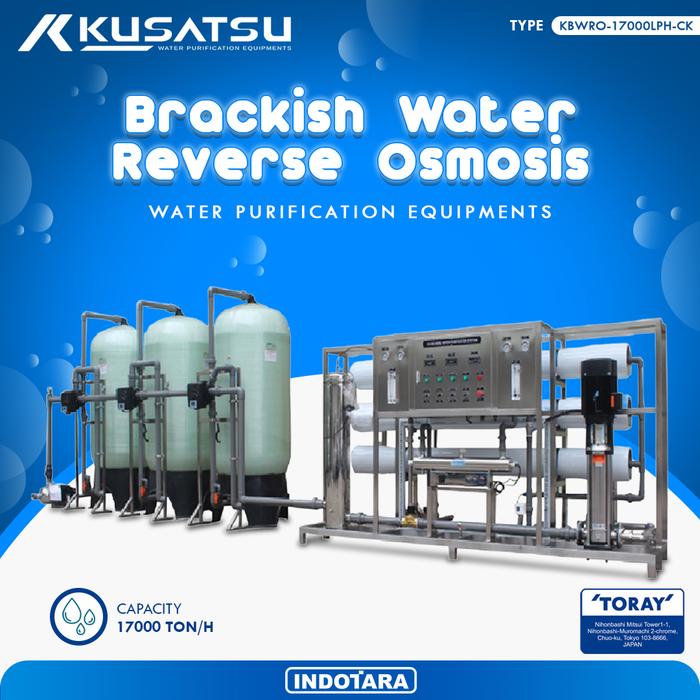

KUSATSU Heavy Duty Brackish Water Reverse Osmosis Water Treatment
• Model : KBWRO-17000LPH-CK
• Reverse osmosis water production : 17 T/H
• Recovery rate : 65-70 %
• Raw water pump : 25 m3/h , 5.5 KW
• Flocculant dosing device : 8 L/H
• Quartz sand filter tank : Dia. 1800×2400 mm
• Quartz sand : 4500 Kg
• Activated carbon filter tank : Dia. 1800×2400 mm
• Quartz sand bedding layer : 950 Kg
• Coconut shell activated carbon : 1350 Kg
• Scale inhibitor / pH regulator dosing device : 8 L/H / 8 L/H
• Security filter : 40 inch, 5 micron, 1 pcs
• High pressure pump : 25 m3/h , 30 KW
• Membrane element : FR11-8040 , 20 pcs
• CIP filter : 40 inch, 5 microns high flow filter element, 1 pcs
• Total rated power / operating power : 40.1 KW / 36.6 KW (3 phase, 380V)
• Warranty : Electrical 12 Months

=====

KUSATSU Heavy Duty Brackish Water Desalination System
• Model : KWT-3000LPH-CK
• Terminal water production : 3000 liter/hour
• Raw water pump : 7 m3/h , 1.5 KW
• Flocculant dosing system : 3 L/H
• High quality manganese sand : 1250 Kg
• Coconut shell activated carbon / quartz sand cushion : 300 / 250 Kg
• Cartridge filter : 40 Inch, 5 micron, 5 Pcs, PP filter
• Ultra-filtration (UF) device water production : 6.0 T/H
• Ultrafiltration membrane element : UFC200AS - Dia. 200×1350MM
• Ultrafiltration backwash pump : 11 m3/h , 1.1 KW
• Backwash dosing system : 3 L/H
• Reverse osmosis booster pump : 6 m3/h , 1.5 KW
• Antiscalant dosing / PH regulator system : 3 / 3 Liter/hour
• Cartridge filter : 40 Inch, 5 micron, 5 Pcs, PP filter
• High pressure pump : 6 m3/h , 11 KW
• Reverse osmosis unit water production : 3.0 T/H
• Membrane element : BW-8040 , 4 Pcs , TORAY, Japan
• CIP water pump : Flow 11 m3/h , 1.1 KW
• CIP filter : 40 Inch, 5 micron, 7 Pcs, PP filter
• Rated total / normal operating power : 18.5 / 15 KW (3 Phase, 380V)
• Warranty : Electrical 12 Months

=====

KUSATSU Brackish Water Desalination System
• Model : KBWRO-6000LPH-CK1
• Water production volume : 6.0 m3/h
• Raw water pump : Flow 10 m3/h, 1.8 KW
• Quartz sand filter : 1500 Kg
• Activated carbon filter : 400 Kg
• Quartz sand and carbon tank : FRP Dia. 1000×1850 mm
• Antiscalant dosing system : Flow 1.5 L/H
• Cartridge filter : 40 inch, 5 microns, PP filter, 7 pcs
• High pressure pump : Flow 10 m3/h, 4.5 KW
• Desalination rate : 96~99%
• System water utilization rate : 60-70%
• Membrane element : 8 pcs
• Power supply : Three-phase five-wire 380V, 50HZ
• Rated total / normal operating power : 8.3 / 6.5 KW
• Ambient temperature installation : 5-45 Celcius degree

Features :
+ PLC by MITSUBISHI, Japan
+ Lowvoltage electrical components by SCHNEIDER, France
+ Food grade stainless steel material by OTTO JUNKER, Germany
+ Reverse osmosis membrane sheet by TORAY, Japan
+ Heavy duty polyurethane coating with JOTUN, Norway
+ Electrical control panel designed by SMITEC, Italy
+ Button and Light by KRAUS & NAIMER, Japan
+ Valve system by KVE GmbH, Germany
+ ORing by TAKAISHI, Japan
+ Touch screen interface
+ Complete with conductivity meter &flow meter
