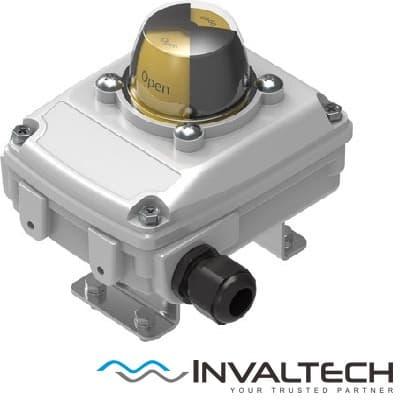

FESTO LIMIT SWITCH TYPE SRBC-CA3-YR90-MW-22A-1W-C2P20 (3482805)

"Authorisation c CSA us (OL)
CE mark (see declaration of conformity) to EU directive low-voltage devices
in accordance with EU RoHS directive
KC mark KC-EMV
Materials note Contains PWIS substances
Conforms to RoHS
Safety Integrity Level (SIL) SIL 2
Ambient temperature -20 ... 80 °C
Switch output Contact-type
Switching element function Toggle switch, single pole
Max. output current AC 3 A
Max. output current DC 3 A
Operating voltage range AC 0 ... 250 V
Operating voltage range DC 0 ... 30 V
Electrical connection Screwed terminal
10-pin
Connectable nominal conductor cross section 0.25 ... 2.5 mm2
Cable gland connection M20x1,5
Permissible cable diameter 5 ... 13 mm
Mounting type On flange to ISO 5211
With mounting bracket
Assembly position Any
Product weight 800 g
Material housing Aluminium die cast
Material seals NBR
Material shaft High alloy steel, non-corrosive
Material screws High alloy steel, non-corrosive
Material blanking plug PA
Material mounting bracket High alloy steel, non-corrosive
Material indicator PC
Material cable connection PA
Material snap ring High alloy steel, non-corrosive
Material disc High alloy steel, non-corrosive
Position indicator Yellow/red
Setting range, angle recording 0 ... 90 deg
Storage temperature -20 ... 80 °C
Protection class IP67
NEMA 4/4X
Shock resistance Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27
Vibration resistance Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6
Degree of contamination 3

Note: Untuk Ketersediaan stock harap tanyakan terlebih dahulu (Terima Kasih)"
