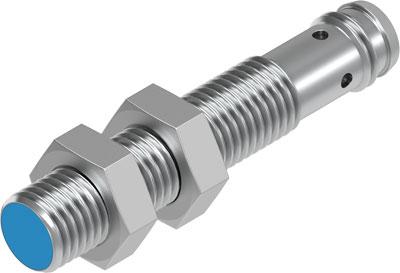

PROXIMITY SENSOR PNP SIEN-M8B-PS-S-L

Conforms to standard EN 60947-5-2 Authorisation RCM Mark c UL us - Listed (OL) CE mark (see declaration of conformity) to EU directive for EMC Materials note Free of copper and PTFE Conforms to RoHS Nominal switching distance 1.5 mm Guaranteed switching distance 1.21 mm Reduction factors Aluminium = 0.25 Stainless steel, St 18/8 = 0.7 Copper = 0.2 Brass = 0.35 Steel, St 37 = 1.0 Ambient temperature -25 ... 70 °C Repetition accuracy for constant conditions 0,07 mm Switch output PNP Switching element function Normally open contact Hysteresis lt;= 0.07 mm Max. switching frequency 5,000 Hz Max. output current 200 mA Voltage drop lt;= 2 V Inductive protective circuit Integrated Short circuit strength Pulsing Operating voltage range DC 10 ... 30 V Residual ripple ± 10% Idle current lt;= 10 mA Polarity protected for all electrical connections Electrical connection Plug M8x1 3-pin Size M8x1 Mounting type with lock nut Type of installation flush Product weight 18 g Material housing Brass PA High alloy steel, non-corrosive Chromed-plated Operating status display Yellow LED Ambient temperature with flexible cable installation -5 ... 70 °C Protection class IP65 IP67 Corrosion resistance classification CRC 2 - Moderate corrosion stress
