Stepper/Servo Motor HMI PLC Integrated Controller Touch Panel 4.3" - Package A

Brand Name: YUN DUAN
Origin: CN(Origin)
Certification: CE
Is Smart Device: No
Application: Lathe and Turning Center
Model Number: YD2N-43FH-24MT-4AD2DA-V-V-2P-2P2
Input voltage: DC 24V
Display Size: 4.3 Inches TFT (97*56mm)
Cutout Size: 120*94mm
Resolution: 480*272 pixels
CPU: 32bit CPU 408MHz
Display Language: Chinese and English
Digital I/O: 12DI/12DO
Digital outputs (DO) type: Transistor Output/Relay Output

Package List:
1X 4.3'' HMI+PLC All-in-one Controller
1X PLC Programming Cable
1X Type-C HMI Download Cable
4X Mounting screws

Please choose:

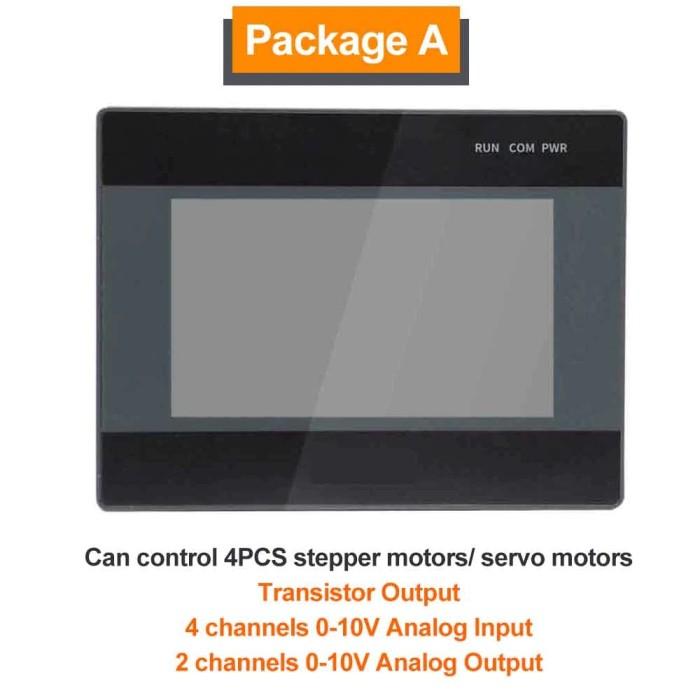

Package A: Transistor Output, 4 channels 0~10V Analog Input, 2 channels 0~10V Analog Output
Package B: Relay Output, 4 channels 0-20mA Analog Input, 2 channels 0-20mA Analog Output
Package C: Transistor Output, without Analog
Package D: Relay Output, without Analog

Electric Parameter:
Input Voltage: DC 24V

Parameters of HMI Part:
Dimension: 134*102*34mm
Display Size: 4.3 Inches TFT (97*56mm)
Cutout Size: 120*94mm
Resolution: 480*272 Pixels
RAM: NOR Flash 8MB
ROM: 64MB
CPU: 32bit CPU 408MHz
Download Port : Type-C
Display Language: Chinese and English

Parameters of PLC Part:
Analog Input (Max 4AI): 4 channels 0-10V (If you need 0-20mA, please leave a message)
Analog Output (Max 2AO): 2 channels 0-10V (If you need 0-20mA, please leave a message)
Accuracy: 12 bits
Digital outputs (DO) type: Transistor Output / Relay Output (Optional)
Digital I/O: 12DI/12DO
Input I/O level: Passive NPN, public terminal isolated
Transistor Output I/O level: NPN
Relay Output I/O level: Normally open dry contact
Transistor Output Allowed max current: MOS: 2A/ Transistor: 500mA
Relay Output Allowed max current: up to 5A load
Transistor Output Loom voltage: DC12V~48V
Relay Output Loom voltage: DC/AC24V~220V
High speed pulse: Y0/Y1 = 200KHz, Y6/Y7 =100KHz, can control 4PCS stepper motors/servo motors
High speed output frequency: Y3-Y0 is 10KHz
PLC switch: Move the DIP switch on the back of the panel to "R" (Run)
