Smart Gateway Bivocom TG451 IoT Industrial Factory Monitoring Realtime

Harap kontak kami terlebih dahulu untuk memastikan ketersediaan stok

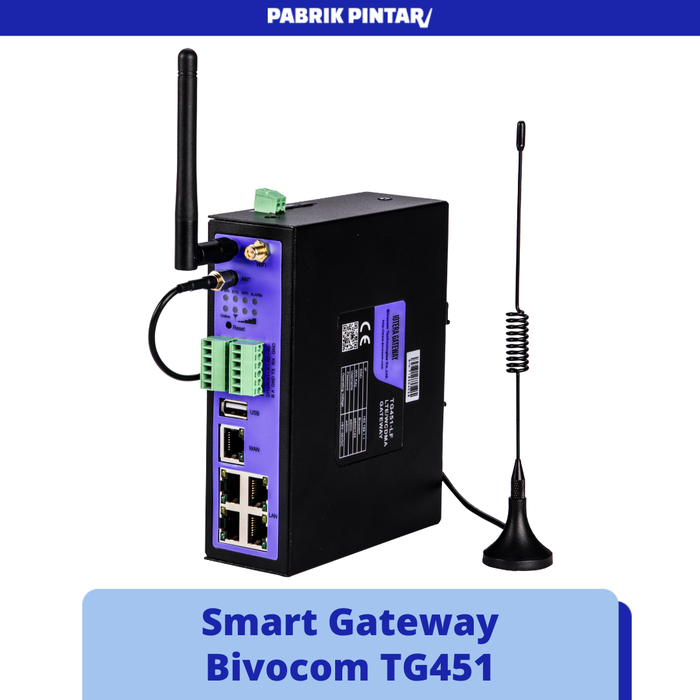

Bivocom TG451 - Smart Gateway

Kegunaan:
Device ini berfungsi sebagai data collector dari sensor/sensornode untuk kemudian dikirimkan via internet menuju platform/dashboard.

Penggunaan:
- Industrial
- Factory / Pabrik
- Retail
- Alat peraga (materi edukasi)
- dst

Spesifikasi:

Cellular Interfaces
Antenna Connector: 2 × 50 Ω SMA Female
SIM Slot: 1, single module

Ethernet Interface
Ports: 5-RJ45 (1-WAN, 4-LAN or 5-LAN)
Data Rate: 10/100 Mbps (Auto-Sensing), Auto MDI/MDIX

Serial Interface
Ports: 1-RS232 + 1-RS485

Wi-Fi
Antenna Connector: 1 × 50 Ω SMA Male
Standard: IEEE 802.11b/g/n
Transmission Rate: IEEE802.11b/g: Up to 54Mbps, IEEE802.11n: Up to 300Mbps

External Storage
USB Port: 1 x USB 2.0
SD (Optional): 1 x Micro SD interface, Up to 32G
Usage: User Program, Data Storage and Firmware Upgrade

I/O
DI: 2-DI (0-30V Input)
DO: 2-Relay (Up to 5A and 30VDC/250VAC output)

GPS (Optional)
Module Antenna: Built-in independent GPS module 1 × 50 Ω
Connector: SMA Female

Power Supply
Standard Power Input Voltage: DC 12V/1.5A 5-35 VDC

Software
Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, VLAN, SSH MQTT
Serial Port: Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN

Physical
Ingress Protection: IP30
Housing & Weight: Metal, 790 g(1.74lbs)
Dimensions: 145 x 114 x 45mm (5.71 x 4.49 x 1.77in)
Mounting: Desktop, DIN-Rail

Environmental
Operating Temperature: -35°C to +75°C (-31℉ to +167℉)

Others
Reset Button: 1
LED Indicators: POWER, WiFi, SYSTEM, ALARM,ONLINE, Signal Strength
Approvals: CE, RCM, NBTC, FCC*(*Under Progress)


di dalam box:
1x Bivocom TG451 smart gateway
2x cellular antenna
1x wifi antenna
1x power adaptor

sudah termasuk PPN
