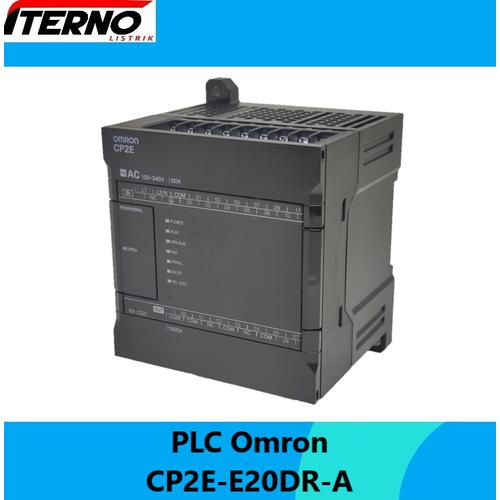

PLC Omron CP2E-E20DR-A CP2EE20DRA
Rp1.395.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: PLC-HMI
PLC Omron CP2E-E20DR-A CP2EE20DRA
Specification :
Supply voltage type AC
Input type PNP/NPN
Number of digital inputs 12
Output type Relay
Number of digital outputs 8
Program capacity 8 K steps
Data memory capacity 4 K words
Logic execution time 0.23 µs
Communication port(s) Serial RS-232C, USB
Number of Ethernet ports 0
Number of USB ports 1
Number of RS-232 ports 1
Number of RS-485 ports 0
Communication option(s) None
Number of encoder input channels 6
Max. encoder input frequency 100 kHz
Max. number of PTP axes 0
Max. pulse output frequency 0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analogue option boards
Max. number of analogue I/O channels 0
Max. number of local I/O points 20
Max. number of expansion units 0
Built-in auxiliary 24 VDC output 0 mA
Operating temperature range -20-60 °C
Product Height (unpacked) 90 mm
Product Width (unpacked) 86 mm
Product Depth (unpacked) 80 mm
Specification :
Supply voltage type AC
Input type PNP/NPN
Number of digital inputs 12
Output type Relay
Number of digital outputs 8
Program capacity 8 K steps
Data memory capacity 4 K words
Logic execution time 0.23 µs
Communication port(s) Serial RS-232C, USB
Number of Ethernet ports 0
Number of USB ports 1
Number of RS-232 ports 1
Number of RS-485 ports 0
Communication option(s) None
Number of encoder input channels 6
Max. encoder input frequency 100 kHz
Max. number of PTP axes 0
Max. pulse output frequency 0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analogue option boards
Max. number of analogue I/O channels 0
Max. number of local I/O points 20
Max. number of expansion units 0
Built-in auxiliary 24 VDC output 0 mA
Operating temperature range -20-60 °C
Product Height (unpacked) 90 mm
Product Width (unpacked) 86 mm
Product Depth (unpacked) 80 mm
