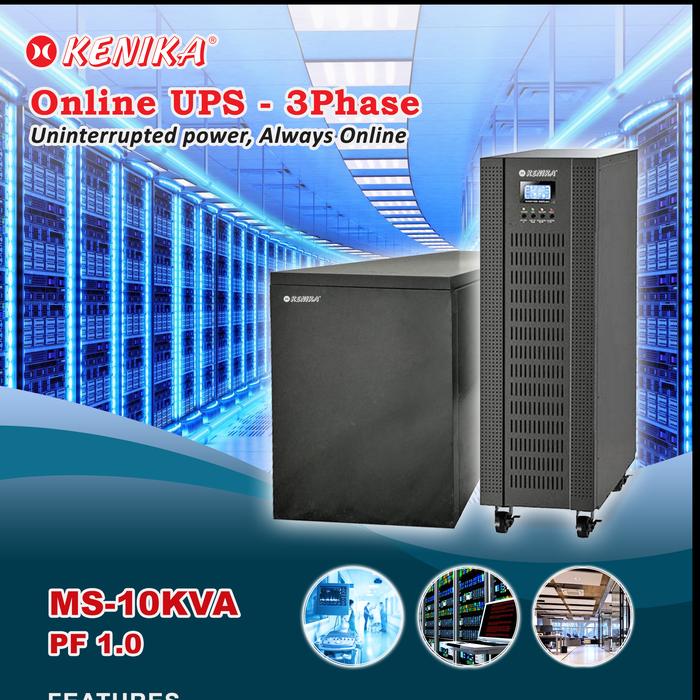

UPS 10KVA 3PASHE KENIKA MS 10KVA + 20pcs Baterai 12V/9

https://youtu.be/iF5qm51Hi7A

MODEL

MS-10KVA

Specification

3 Phase INPUT & 3 Phase OUTPUT

Capacity

10KVA / 8KW

Input voltage

3 x 400 VAC (3 Ph + N)

Voltage range

190 - 520 VAC ; 305 - 478 VAC

Power factor

≥ 0.99 @ 100% load

Output voltage

Three Phase 380VAC (3 Ph + N)

Frequency range

46 -54Hz or 56 - 64Hz

Surge ratio

3 : 1 (max)

THD

≤ 2% THD (linear load), ≤ 5% THD (unlinear load)

Transfer time

0ms

Wave form (batt mode)

Pure Sine Wave

AC mode

89%

Battery mode

86%

Quantity

20 piece (optional during 16 - 20 piece)

Max charging current

4A

Charging voltage

273VDC ± 1%

Battery mode

Sounding every 4 second

Battery with low power

Sounding every 1 second

Overload

Sounding every 0.5 second

Mistake

continuously sounding

Size (mm)

592 x 250 x 826

N.G. (KG)

38

Humidity

0 - 95% RH @ 0 - 40℃ (no frost)

Noise

< 60dB @ 1 meter

RS-232 / USB

Support Windows 2000 / 2003 / XP / Vista / 2008,
Windows 7 / 8, Linux, Unix, and MAC

Optional SNMP

Power management support SNMP management and
network management

Standard package

Wooden case
