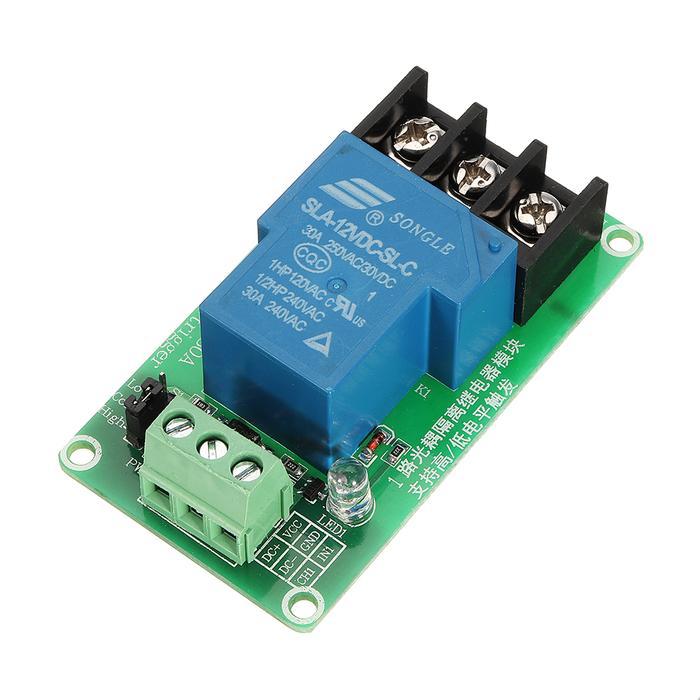

12V 1 Way 30A Optocoupler Isolation Support High and Low Level

Rp301.000
  • Kondisi: Baru
  • Waktu Preorder: 15 Hari
  • Min. Pemesanan: 1 Buah
  • Etalase: Electronic Components And Supplies
12V 1 Way 30A Optocoupler Isolation Support High and Low Level Trigger Switch Relay Module Welcome To My Shop : Budayakan Membaca Sebelum Membeli Barang Yang Anda Lihat Ini Barang PO (Pre-Order) Produk Import (Luar Negri) Pengiriman Super Cepat, Kebanyakan Barang Yang Kami Kirimkan 7-12 Hari Sudah Sampai Packing Aman dan Secure Produk Original Harap Chat Terlebih Dahulu Sebelum Order Untuk Ketersedian Barang DiGudang Import Happy Shopping ! Feature: 1. The module adopts genuine high quality 30A relay, the maximum load of normally open interface: AC 250V/30A, DC 30V/30A.2. Using chip optocoupler isolation, strong driving ability, stable performance; trigger current 5mA.3. Module operating voltage 12V.4. The module can be triggered by a jumper to set a high or low level.5. The interface design is user-friendly, and all interfaces can be directly connected through the terminal block, which is very convenient.6. Module size: 72 x 40 x 24mm (Length * Width * Height), with module holder: 86 x 43 x 45mm7. Product net weight: 46g8. 4 fixing bolt holes, hole 3.1mm, spacing 44.5 x 27.5mmRelayQuiescent CurrentMaximum currentTrigger current12V5mA190mA2-4mA Module interface description: 1. DC+: Module DC power supply positive (trigger terminal voltage positive)2. DC-: Module DC power supply negative (trigger terminal voltage negative)3. IN: Signal trigger terminal (default trigger voltage is the same as power supply)4. High/low level trigger mode selection, when the jumper is connected with the L terminal, the IN terminal is low level trigger, and when connected to the H terminal, it is triggered high level.5. Normally closed terminal (NC): relay normally closed terminal6. Common (COM): Relay Common7. Normally open (NO): The relay is normally open Package includes: 1 x Realy SKU - 1380807
