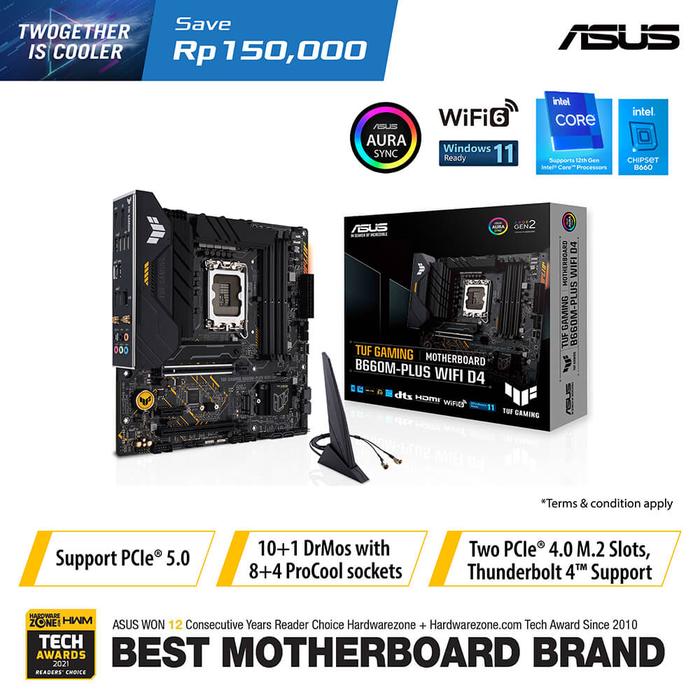

ASUS TUF GAMING B660M-PLUS WIFI DDR4 - Intel Motherboard LGA1700

NOTE : SEBELUM DI ORDER DIHARAPKAN DISKUSI UNTUK CHECK STOCK BARANG TERSEBUT, TERIMA KASIH ATAS PERHATIAN NYA

CPU
- Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors

Chipset
- Intel B660

Memory
- 4 x DIMM, Max. 128GB, DDR4
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Graphics
- 1 x DisplayPort**
- 1 x HDMI port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' resolution.

Expansion Slots
- Intel 12th Gen Processors
# 1 x PCIe 5.0 x16 slot
- Intel B660 Chipset*
# 1 x PCIe 3.0 x16 slot (supports x4 mode)
# 1 x PCIe 4.0 x1 slot
* Supports Intel Optane Memory H Series on PCH-attached PCIe slot.

Storage
- Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel 12th Gen Processors
# M.2_1 slot (Key M), type 2242/2260/2280
## Intel 12th Gen processors support PCIe 4.0 x4 mode.
- Intel B660 Chipset**
# M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
# 4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Ethernet
- 1 x Realtek 2.5Gb Ethernet

Form Factor
- microATX
- 24.4cm x 21.1cm

Wireless & Bluetooth
- Intel Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2*
*Bluetooth v5.2 function will be ready in Windows 11 or later.
