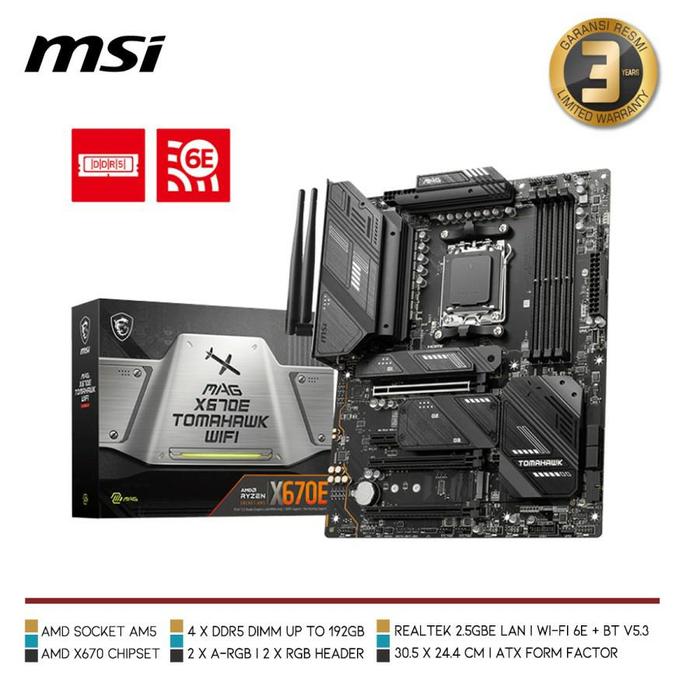

MSI MAG X670E TOMAHAWK WIFI DDR5 - AMD Motherboard Socket AM5

NOTE : SEBELUM DI ORDER DIHARAPKAN DISKUSI UNTUK CHECK STOCK BARANG TERSEBUT, TERIMA KASIH ATAS PERHATIAN NYA

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

CHIPSET
- AMD X670

CPU SUPPORT
- Supports AMD Ryzen 7000 Series Desktop Processors
- Socket AM5

MEMORY
- 4x DDR5, Maximum Memory Capacity 192GB
- Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

ONBOARD GRAPHICS
- 1x HDMI
- 1x DisplayPort
- 1x Type-C DisplayPort

EXPANSION SLOT
- 3x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
- PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)

STORAGE
- 4x M.2 slot
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 4x SATA 6G port

LAN
- Realtek RTL8125BG 2.5Gbps LAN

WIRELESS / BLUETOOTH
- AMD Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth 5.3**

AUDIO
- Realtek ALC1200 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

OPERATING SYSTEM
- Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION
- ATX
- 243.84mmx304.8mm
