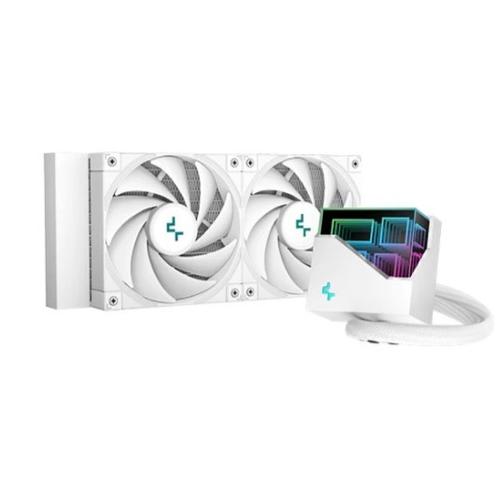

DeepCool LT520 WHITE - High-Performance Liquid CPU Cooler

LT520
The DeepCool LT520 high-performance liquid CPU cooler provides strong heat dissipation power with a 240mm radiator, two precision-tuned FK120 fans, and a multidimensional infinity mirror top cap.

Break Open Another Dimension
A three-dimensional infinity mirror surface is revealed underneath the top cover that offers a new visual experience through a multi-faceted geometric reflection.

A NEW ERA OF DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1 Improved microchannel design ensures optimal coolant flow.
2 Powerful three-phase drive motor up to 3100 RPM.
3 Thick solid copper base with a seamless match.

Extremely Powerful
Maximize cooling potential with DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long-term reliability.

Synchronize Your Setup with RGB lighting effects
Coordinate your colors through supported RGB software and motherboard synchronization to access control for different lighting effects that match the rest of your setup.

Technical Spec
Net Weight 1504 g
Radiator Dimensions 282×120×27 mm
Radiator Material Aluminum
Tube length 410 mm
Pump Dimensions 94×80×68 mm
Pump Speed 3100 RPM±10%
Pump Noise 19 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.38 A
Pump Power Consumption 4.56 W
Fan Dimensions 120×120×25 mm
Fan Speed 500~2250 RPM±10%
Fan Airflow 85.85 CFM
Fan Air Pressure 3.27 mmAq
Fan Noise ≤32.9 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.22 A
Fan Power Consumption 2.64 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 3.15 W（PUMP）
