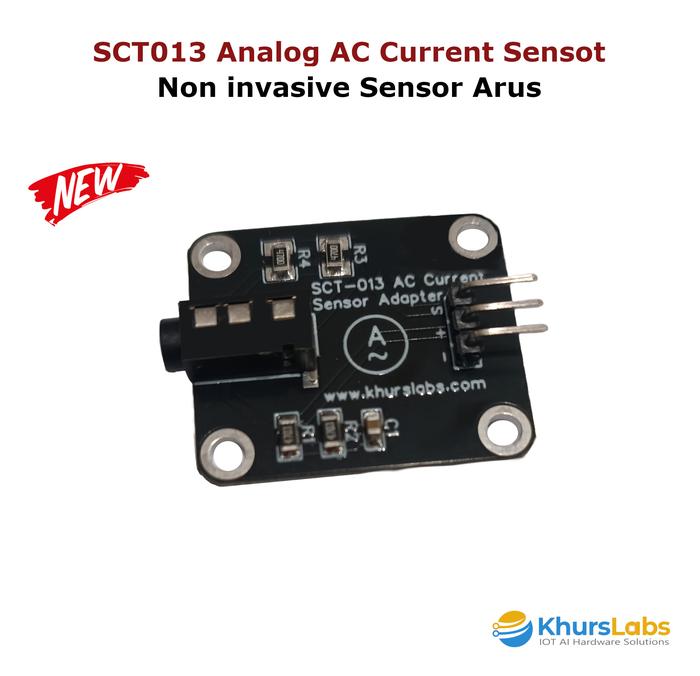

SCT013 050 50A 1V Non invasive AC Current Sensor Arus Klem Transformer - BOARD ONLY
Rp50.000
Pilih ukuran: BOARD ONLY
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: 00 - KHURSLABS
ππππ: πππππ ππππππππ πππππ ππππ ππππππππ ππ ππππ ππππππ πππππππππ
KU: KM4017
Specifications
Input Current: 0~50A AC
Output Mode: DC 0~1V
Non-linearityοΌ2-3%
Build-in sampling resistanceοΌRL): 62Ξ©
Turn Ratio: 1800:1
Resistance Grade: Grade B
Work Temperature: -25Β°C ~ οΉ’70Β°C
Dielectric Strength(between shell and output): 1000V AC/1min 5mA
Leading Wire in Length: 1m
Open Size: 13mm x 13mm
Applications
Suitable for the current measuring
Monitoring and protection of AC motor
Lighting equipment
Air compressor
Sample Code: https://drive.google.com/file/d/14HETfd79l-QAUTkYYXvhuI4khpqD-or1/view?usp=sharing
KU: KM4017
Specifications
Input Current: 0~50A AC
Output Mode: DC 0~1V
Non-linearityοΌ2-3%
Build-in sampling resistanceοΌRL): 62Ξ©
Turn Ratio: 1800:1
Resistance Grade: Grade B
Work Temperature: -25Β°C ~ οΉ’70Β°C
Dielectric Strength(between shell and output): 1000V AC/1min 5mA
Leading Wire in Length: 1m
Open Size: 13mm x 13mm
Applications
Suitable for the current measuring
Monitoring and protection of AC motor
Lighting equipment
Air compressor
Sample Code: https://drive.google.com/file/d/14HETfd79l-QAUTkYYXvhuI4khpqD-or1/view?usp=sharing
