DFRobot URM08 RS485 Ultrasonic Ranging Sensor ( Jarak 35~550cm)

𝐍𝐎𝐓𝐄: 𝐓𝐈𝐃𝐀𝐊 𝐌𝐄𝐍𝐄𝐑𝐈𝐌𝐀 𝐊𝐋𝐀𝐈𝐌 𝐀𝐓𝐀𝐔 𝐊𝐎𝐌𝐏𝐋𝐀𝐈𝐍 𝐃𝐈 𝐋𝐔𝐀𝐑 𝐒𝐈𝐒𝐓𝐄𝐌 𝐓𝐎𝐊𝐎𝐏𝐄𝐃𝐈𝐀


CODE: SEN0246
SKU: KG4004A


INTRODUCTION
With an internal temperature compensation and accurate distance detection, URM08-RS485 is a combination of temperature measurement device and distance inspection tool. The inner is fully enclosed and the external is made of metal crust, which has brought advantages such as waterproof, dustproof and corrosion resistance… It is applicable to detections of liquid level, levels, and barrier applications. As a high standard sensor, it guarantees smaller blind zone and larger inspection range. On the premise of stable output data, it shows better measurement capabilities in the market of temperature sensors and distance detection sensors.


SPECIFICATION
Operating Voltage: DC 6.0 ~ 12.0V
Operating Current: 250mA
Effective Range: 35 ~ 550 cm
Distance Resolution: 1cm
Temperature Resolution: 0.1°C
Temperature Error: ± 1 ℃
Measurement Period: 70ms
Operating Temperature Range: -10 ~ 70 ℃
Distance Error: ±1%
Operating Humidity Range: RH<75%
Acoustic Frequency: 38 ~ 42KHz
Direction Angle: 60 °
Protection Degree: IP65
Communication Interface: RS485


Wiki - https://wiki.dfrobot.com/URM08-RS485_Waterproof_Sonar_Range_Finder_SKU_SEN0246

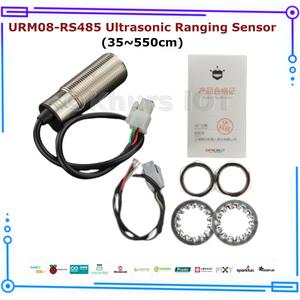

SHIPPING LIST
URM08-RS485 U ltrasonic Ranging Sensor x1
Screw Nuts x2
Metal Pads x2
Adaptor Wire x1
