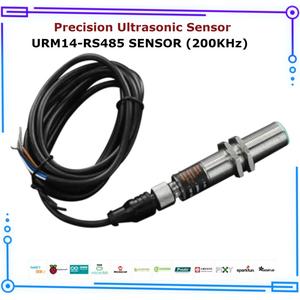

DFRobot URM14 RS485 Precision Ultrasonic Sensor(200KHz)

Rp1.995.000

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: 04 - DFROBOT OFFICIAL

𝐍𝐎𝐓𝐄: 𝐓𝐈𝐃𝐀𝐊 𝐌𝐄𝐍𝐄𝐑𝐈𝐌𝐀 𝐊𝐋𝐀𝐈𝐌 𝐀𝐓𝐀𝐔 𝐊𝐎𝐌𝐏𝐋𝐀𝐈𝐍 𝐃𝐈 𝐋𝐔𝐀𝐑 𝐒𝐈𝐒𝐓𝐄𝐌 𝐓𝐎𝐊𝐎𝐏𝐄𝐃𝐈𝐀

SKU: KA5008
CODE: SEN0358

𝐃𝐄𝐒𝐂𝐑𝐈𝐏𝐓𝐈𝐎𝐍:
DFRobot URM14 RS485 Precision Ultrasonic Sensor(200KHz) is a high-frequency precision ultrasonic sensor for industrial use. The sensor measurement and signal processing unit is completely encapsulated in an M18 metal shell and its tail is designed with an aviation connector plug. The sensor uses the RS485 interface that follows the standard Modbus-RTU communication protocol, which assures its compatibility with PLC industrial personal computer.

𝐒𝐏𝐄𝐒𝐈𝐅𝐈𝐊𝐀𝐒𝐈:
Operating Voltage: DC 7-15V
Max Instantaneous Current: 350mA
Effective Measuring Range: 100-1500mm
Distance Resolution: 0.1mm
Measuring Accuracy: 1mm
Distance Error: ±0.1%
Temperature Resolution: 0.1℃
Temperature Error: ±1℃
Measuring Frequency: 30HZ
Operating Temperature: -20℃～＋80℃
Sensor Acoustic Frequency: 200KHz±4%
Directional Angle: 12°±2°(-6dB)
Protection Grade: IP65
Communication Interface: RS485

𝐏𝐀𝐂𝐊𝐈𝐍𝐆 𝐋𝐈𝐒𝐓:
URM14-RS485 Precision Ultrasonic Sensor(200KHz) x1
Mounting Nut x2

Module Wire Connecting Order:
Orange-----VCC
Black------GND
Blue------RS485-B
White-----RS485-A

Wiki : https://wiki.dfrobot.com/URM14_RS485_Precision_Ultrasonic_Sensor_200KHz_SKU_SEN0358
