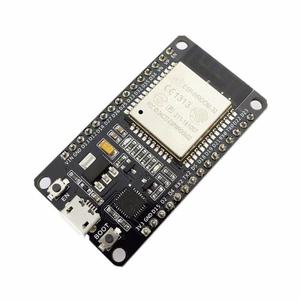

ESP 32 WROOM 32 ESP32 WiFi BLE Development Board ESP32 DEVKIT - Micro USB

𝐍𝐎𝐓𝐄: 𝐓𝐈𝐃𝐀𝐊 𝐌𝐄𝐍𝐄𝐑𝐈𝐌𝐀 𝐊𝐋𝐀𝐈𝐌 𝐀𝐓𝐀𝐔 𝐊𝐎𝐌𝐏𝐋𝐀𝐈𝐍 𝐃𝐈 𝐋𝐔𝐀𝐑 𝐒𝐈𝐒𝐓𝐄𝐌 𝐓𝐎𝐊𝐎𝐏𝐄𝐃𝐈𝐀

SKU:KK4002 ( Micro USB)
SKU: KG4003 (Type C)


SP32 ESP-32 IOT Wireless Wifi Wi-fi Bluetooth Arduino Internet of Things

Bisa dibilang ini versi kakaknya dari esp8266 atau 'nodemcu', speed lebih tinggi, Port IO lebih banyak dan sudah ada Bluetooth, dan yang kerennya, Ada banyak PORT ADC, dibandingkan esp8266 yang hanya 1 PORT ADC

Spesifikasi
- Program memory 448 kB
- CAN, I2C, I2S, SDIO, SPI, UART
- ADC 12-bit
- Maximum clock 120 MHz
- Tegangan suplai 3.3 V hingga 5V
- Wi-Fi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s)
- Bluetooth: v4.2 BR/EDR and Bluetooth Low Energy (BLE)
- 1 x UART, including hardware flow control RTS CTS
- 1 x SPI
- 1 x I2C
- 18 x ADC input channels
- 2 x DAC
- PWM/timer input/output available on every GPIO pin
- OpenOCD debug interface with 32 kB TRAX buffer
- SDIO master/slave 50 MHz
- Supports external SPI flash up to 16 MB
- SD-card interface support
