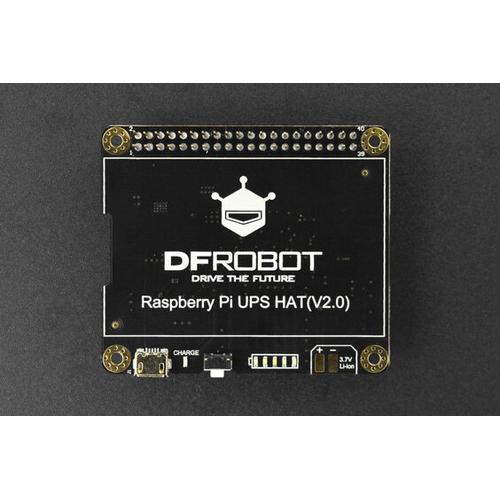

Raspberry Pi UPS HAT - DFRobot Power supply shield

𝐍𝐎𝐓𝐄: 𝐓𝐈𝐃𝐀𝐊 𝐌𝐄𝐍𝐄𝐑𝐈𝐌𝐀 𝐊𝐋𝐀𝐈𝐌 𝐀𝐓𝐀𝐔 𝐊𝐎𝐌𝐏𝐋𝐀𝐈𝐍 𝐃𝐈 𝐋𝐔𝐀𝐑 𝐒𝐈𝐒𝐓𝐄𝐌 𝐓𝐎𝐊𝐎𝐏𝐄𝐃𝐈𝐀


SKU: KL1039
CODE: DFR0494


Notes

1.3.7V Lithium Battery is not included in the package due to transportation constraints
2.Please use 3.7V Lithium Battery that meets the standard specification
3.Please note that there would be a certain degree of heating in the power source area of the product during operation, you can never be too careful in use.

FEATURES
Standard Raspberry Pi extension interface, compatible with other expansion boards
Support 2A maximum current output, suitable for more Raspberry Pi applications
Auto switching of charge/recharge path, designed to against power-down
On-board 5 LEDs for showing the batteries’ status
On-board Maxim fuel gauge IC
Support reading battery information via I2C communication
Lithium battery charge/discharge protection and over-heating protection
Anti-backflow mainboard power source

SPECIFICATION
Supply Voltage: 4.5~5.5V
Supply Current: (recommend using adapter with power of 2A and above)
Power Supply Interface: Micro-USB
Maximum Charge Current: 1.6A
Battery Interface: PH2.0-2P or solderable contact
Battery: 3.7 Lithium Battery
Output Voltage: 5V
Maximum Output Current: 2A
Communication Interface: I2C
Dimension: 65mmx56mm/2.56”x2.20”
Mounting Hole Size: 58mmx49mm/2.28”x1.93”
Operating Temperature: -40℃~85℃

SHIPPING LIST
Raspberry Pi UPS HAT x1
Copper Columns and Screws x4 sets


Wiki- https://wiki.dfrobot.com/Raspberry_Pi_UPS_HAT_SKU_DFR0494
