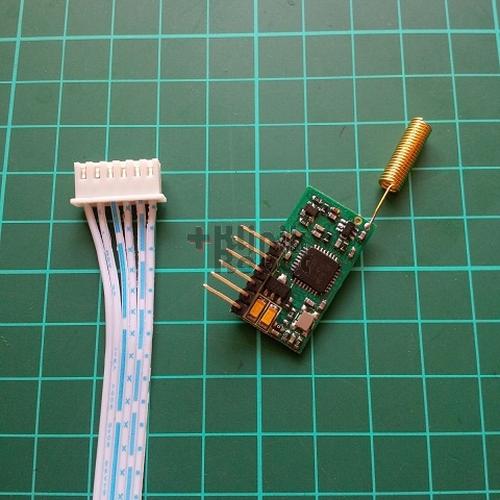

KYL-500S 450MHz, 9600bps, TTL KR06128
Tambah CatatanKYL-500S 450MHz, 9600bps, TTL KR06128
Terjual 6
rating 5 (1 ulasan)
Diskusi (1)
Rp280.000
Detail
- Kondisi: Baru
- Berat: 50 Gram
- Waktu Preorder: 2 Minggu
- Kategori: Baterai
- Etalase: Controller Board - Driver - Module - Batere Power Supply
Specifications :
* Power output: DC 5V (customize);
* RF power: 10mW
* RF Effective Rate: 9600bps - default (can customized : 1200/2400/4800/19200bps)
* Interface baud rate: 9600bps - default (can customized : 1200/2400/4800/19200bps)
* Frequency Band: 450MHz
* Interface: TTL
* Communication Mode: Half-duplex
* Offering a transparent data interface, it is suitable for any standard or non-standard user protocols
* Channel: 8 (default), can be customized into 16, 32
* Receive current: 20mA (TTL connect)
* Receive sensitivity: -123dBm(at)1200bps);-118dBm(at)9600bps)
* Transmitting current: 40mA ;
* Sleep current: 20uA ;
* RF Line-of-sight Range: 600m (BER=10-5(at)9600bps); 1000m (BER=10-5(at)1200bps); (BER=Bit Error Rate)
* Board dimension (without antenna port): 28mm15mm10mm
detail :
radio-frequency/kyl-500s-450mhz-9600bps-ttl.
* Power output: DC 5V (customize);
* RF power: 10mW
* RF Effective Rate: 9600bps - default (can customized : 1200/2400/4800/19200bps)
* Interface baud rate: 9600bps - default (can customized : 1200/2400/4800/19200bps)
* Frequency Band: 450MHz
* Interface: TTL
* Communication Mode: Half-duplex
* Offering a transparent data interface, it is suitable for any standard or non-standard user protocols
* Channel: 8 (default), can be customized into 16, 32
* Receive current: 20mA (TTL connect)
* Receive sensitivity: -123dBm(at)1200bps);-118dBm(at)9600bps)
* Transmitting current: 40mA ;
* Sleep current: 20uA ;
* RF Line-of-sight Range: 600m (BER=10-5(at)9600bps); 1000m (BER=10-5(at)1200bps); (BER=Bit Error Rate)
* Board dimension (without antenna port): 28mm15mm10mm
detail :
radio-frequency/kyl-500s-450mhz-9600bps-ttl.
