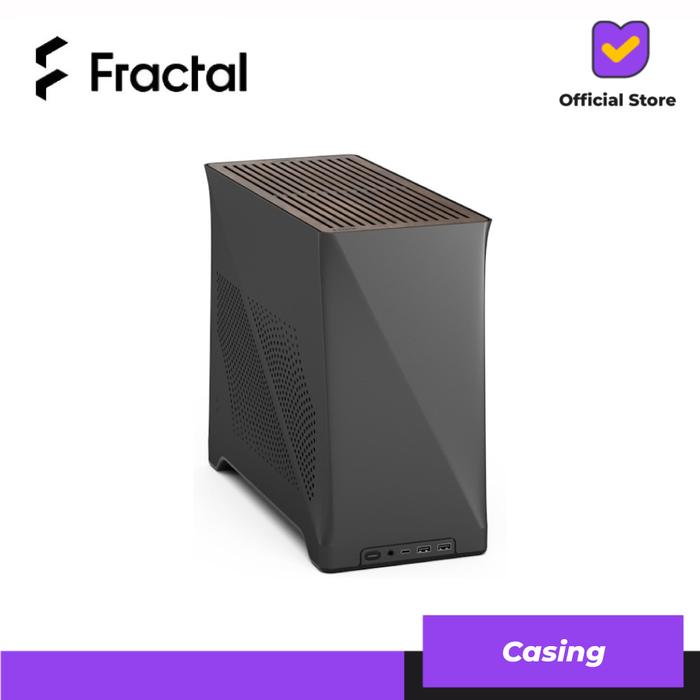

FRACTAL DESIGN Era 2 | Evolution of Our Iconic Small Form Factor Case - Charcoal Grey

PRODUCT ORIGINAL RESMI EMD INDONESIA

3.5"/2.5" drive mounts
- 0 total, 0 included

Dedicated 2.5" drive mounts
- 4 total, 4 included (2 on motherboard wall)

5.25” drive mounts
- 0 total, 0 included

Expansion slots
- 3

Motherboard compatibility
- ITX

Power supply type
- SFX / SFX-L

Front interface
- 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, Audio

Total fan mounts
- 4 x 120 or 2 x 120 and 2 x 140 mm (2x120 mm Aspect PWM fans included)

Top fan
- 2 x 120 mm or 2 x 140

Bottom fan
- 2 x 120 mm

Dust filters
- Bottom

Top radiator
- Up to 315 x 140 mm with total thickness ≤ 52 mm
- Up to 300 x 140 mm with total thickness ≤ 58 mm

GPU max length
- 326 mm

GPU max Height
- 137 mm

GPU max thickness
- 48-63 mm (depending on motherboard wall position)

CPU cooler max height
- 55-70 mm (depending on motherboard wall position)

Cable routing grommets
- No

Fixed velcro straps
- Yes (2 included)

Captive thumbscrews
- PCI-e Blanks

Panels
- Aluminum

SFF-Ready Enthusiast GeForce Cards
- Yes

Other

Case dimensions (LxWxH)
- 366 x 165 x 314 mm

Case dimensions w/o feet/protrusions/screws
- 365 x 165 x 314 mm

Package dimensions (LxWxH)
- 455 x 250 x 408 mm

Package contents
- Case, Accessory Box, Designers Letter, Quick Start Note

Accessory box contents
- SSD Screw x16, PSU Screw x4, Motherboard Screw x8, Zip Tie x4

Product code
- Era 2 Silver: FD-C-ERA2N-01 Era 2 Charcoal Gray: FD-C-ERA2N-02 Era 2 Midnight Blue: FD-C-ERA2N-03
