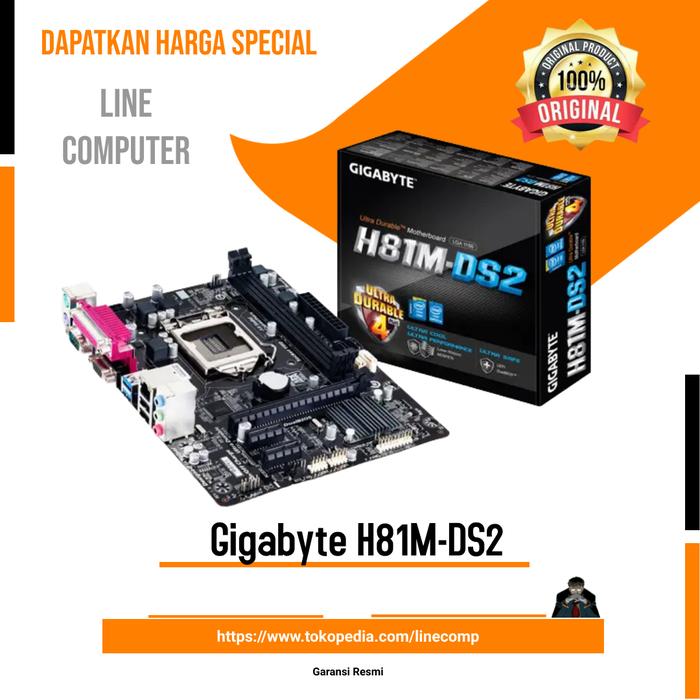

Motherboard Gigabyte GA H81M-DS2 (LGA1150, H81, DDR3, USB3.0, SATA3)

MB Motherboard GIGABYTE GA H81M-DS2 - Mainboard Mobo H81M Garansi Resmi 3 Tahun -Supports 4th Generation Intel Core processors -GIGABYTE Ultra Durable 4 Plus Technology -GIGABYTE UEFI DualBIOS -USB 3.0 ports with GIGABYTE 3x USB power -GIGABYTE On/Off Charge for USB devices -LAN with high ESD Protection -LPT, COM, D-SUB port on rear panel -All solid capacitors design CPU -Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package -L3 cache varies with CPU Chipset Intel H81 Express Chipset Memory -2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. -Dual channel memory architecture -Support for DDR3 1600/1333 MHz memory modules -Support for non-ECC memory modules -Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor - Intel HD Graphics support: -1 x D-Sub port, supporting a maximum resolution of 1920x1200 -Maximum shared memory of 1 GB Audio -Realtek ALC887 codec -High Definition Audio -2/4/5.1/7.1-channel LAN Realtek GbE LAN chip (10/100/1000 Mbit) Expansion Slots -1 x PCI Express x16 slot, running at x16 -2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.) Internal I/O Connectors -1 x 24-pin ATX main power connector -1 x 4-pin ATX 12V power connector -2 x SATA 6Gb/s connectors -2 x SATA 3Gb/s connectors -1 x CPU fan header -1 x system fan header -1 x front panel header -1 x front panel audio header -2 x USB 2.0/1.1 headers -1 x Clear CMOS jumper
