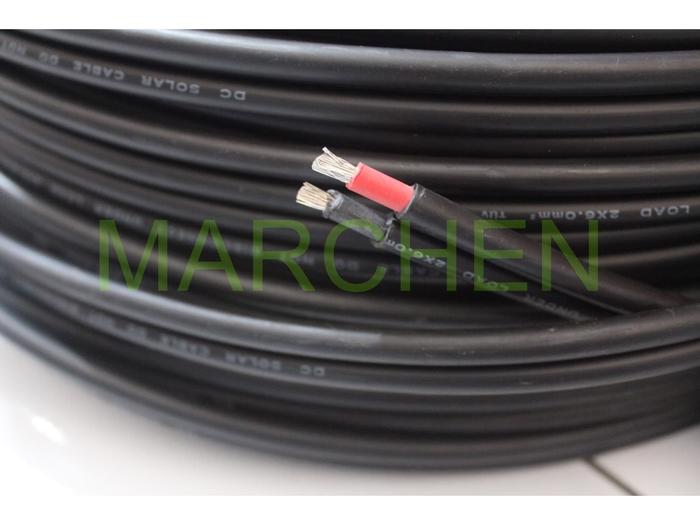

KABEL PV-1F PV 1F KABEL PV1F 2x6 SOLAR PANEL SURYA 6mm TUV 2x6mm
Rp40.400
- Kondisi: Baru
- Min. Pemesanan: 5 Buah
- Etalase: Kabel Solar panel
KABEL PV-1F PV 1F KABEL PV1FSOLAR PANEL SURYA 2x6mm 6mmTUV
*Harga per 1 meter, minimal 10 meter.
*Orderan dengan kelipatan 5 meter, misalkan 10m,15m,20m,25m, dan seterusnya
Spesifikasi
- Brand : PNTECH, PV1-F 2x6mm² TUV
- Cross-Section : 2 x 6mm² (Twin-Core)
- Wire Core Material : Tinned Wire
- Conductor Material : Stranded Tinned Copper (High Resistant Oxygen Copper,Tin Plated)
- Conductor Resistance : 3.39Ω/km
- Insulation Material : Double Insulated, XLPE (Cross-linked Polyethylene)
- Rated Current (DC) : 70 A
- Rated Voltage (DC) : 1,800 VDC
- Temperature Range : -40°C to +90°C (max. conductor temperature 120°C)
- Smallest Bending Radius : 5 x Outer Diameter (yang di-ijinkan).
Feature:
1. Dual wall insulation.Electron beam cross-linked
2. Excellent resistance to U.V,oil,greases,oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carring capacity
7. TUV approved
*Harga per 1 meter, minimal 10 meter.
*Orderan dengan kelipatan 5 meter, misalkan 10m,15m,20m,25m, dan seterusnya
Spesifikasi
- Brand : PNTECH, PV1-F 2x6mm² TUV
- Cross-Section : 2 x 6mm² (Twin-Core)
- Wire Core Material : Tinned Wire
- Conductor Material : Stranded Tinned Copper (High Resistant Oxygen Copper,Tin Plated)
- Conductor Resistance : 3.39Ω/km
- Insulation Material : Double Insulated, XLPE (Cross-linked Polyethylene)
- Rated Current (DC) : 70 A
- Rated Voltage (DC) : 1,800 VDC
- Temperature Range : -40°C to +90°C (max. conductor temperature 120°C)
- Smallest Bending Radius : 5 x Outer Diameter (yang di-ijinkan).
Feature:
1. Dual wall insulation.Electron beam cross-linked
2. Excellent resistance to U.V,oil,greases,oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carring capacity
7. TUV approved
