Ultrasonic Level Sensor (Segregated Type)
Rp13.980.000
- Kondisi: Baru
- Waktu Preorder: 15 Hari
- Min. Pemesanan: 1 Buah
- Etalase: Sensors and Detector

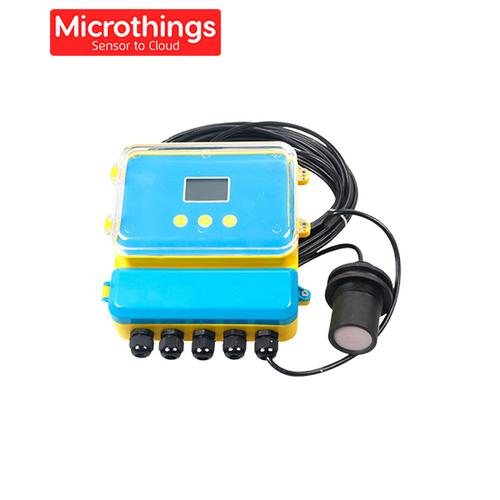

Ultrasonic Level Sensor Long Range
Model : US9000 Long Range Ultrasonic Level Sensor
US9000 Long range ultrasonic level sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.
Technical Data
Level Range :0-20 M and optional ( Customized )
Output :1~5V/0~5V/0-10V;4-20mA RS485
Bline Zone :25~120cm
Power supply :AC250V/ 8A; DC30V/ 5A
Working temp :-20°C~+80°C
Pressure port :M68*2.0 male; G 1-1/2 " male; M108*2.0 male
Advantages
Support M49*1.5 mm threaded into type installation and coil clamping type installation
Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
Housing adopts the NLEPE synthetic material IP66 waterproof
High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Application :
Liquid level measurement
Solid level measure
Beverages level monitoring
Non contact measurement in farm warehouse
Noted :
If Need Customized Please Contact Us
Model : US9000 Long Range Ultrasonic Level Sensor
US9000 Long range ultrasonic level sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.
Technical Data
Level Range :0-20 M and optional ( Customized )
Output :1~5V/0~5V/0-10V;4-20mA RS485
Bline Zone :25~120cm
Power supply :AC250V/ 8A; DC30V/ 5A
Working temp :-20°C~+80°C
Pressure port :M68*2.0 male; G 1-1/2 " male; M108*2.0 male
Advantages
Support M49*1.5 mm threaded into type installation and coil clamping type installation
Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
Housing adopts the NLEPE synthetic material IP66 waterproof
High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Application :
Liquid level measurement
Solid level measure
Beverages level monitoring
Non contact measurement in farm warehouse
Noted :
If Need Customized Please Contact Us
