Atur jumlah dan catatan
Stok: 38
Subtotal
Rp705.000

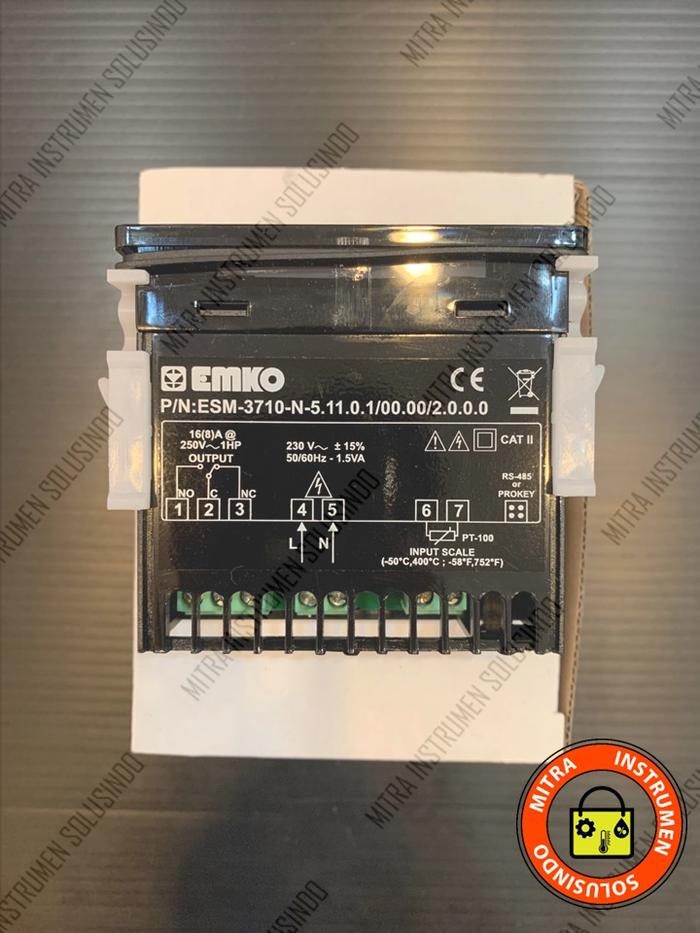

EMKO Digital ON/OFF Temperature Control Device ESM-3710-N (230 VAC) - PT100
Rp705.000
Pilih input type: PT100
*DIJAMIN ASLI, PALSU BARANG KEMBALI*
1 Relay Output
Supply Voltage and Power: 230 Vac (±%15) 50/60 Hz. 2.5 VA
Spesifikasi:
- Dimension: 76 mm x 34,5 mm x 71 mm
- Protection Class: NEMA 4X (IP65 at front, IP20 at rear)
- Installation: Fixed Installation
- Storage Temperature: -30°C to +80°C
- Storage/Operating Humidity: 90 % max. (None condensing)
- Accuracy: ± % 1 of full scale
- Relay Output: 16 A@250 Vac at resistive load
- Control Form: On / Off
- Reading Frequency: 3 readings per second
Fitur:
- Installing parameters using Prokey
- Password protection for programming section
- Adjustable internal buzzer according to sensor defect status
- 4 Digits Display
- Adjustable temperature offset
- ON/OFF temperature control
- Selectable heating or cooling function
- Remote access, data collecting and controlling
with Modbus RTU (Optional) (Lihat catatan)
Catatan:
(Opsional) Jika ingin mempunyai komunikasi Modbus RTU RS485 dapat menggunakan modul:
1. PRO485
1 Relay Output
Supply Voltage and Power: 230 Vac (±%15) 50/60 Hz. 2.5 VA
Spesifikasi:
- Dimension: 76 mm x 34,5 mm x 71 mm
- Protection Class: NEMA 4X (IP65 at front, IP20 at rear)
- Installation: Fixed Installation
- Storage Temperature: -30°C to +80°C
- Storage/Operating Humidity: 90 % max. (None condensing)
- Accuracy: ± % 1 of full scale
- Relay Output: 16 A@250 Vac at resistive load
- Control Form: On / Off
- Reading Frequency: 3 readings per second
Fitur:
- Installing parameters using Prokey
- Password protection for programming section
- Adjustable internal buzzer according to sensor defect status
- 4 Digits Display
- Adjustable temperature offset
- ON/OFF temperature control
- Selectable heating or cooling function
- Remote access, data collecting and controlling
with Modbus RTU (Optional) (Lihat catatan)
Catatan:
(Opsional) Jika ingin mempunyai komunikasi Modbus RTU RS485 dapat menggunakan modul:
1. PRO485
