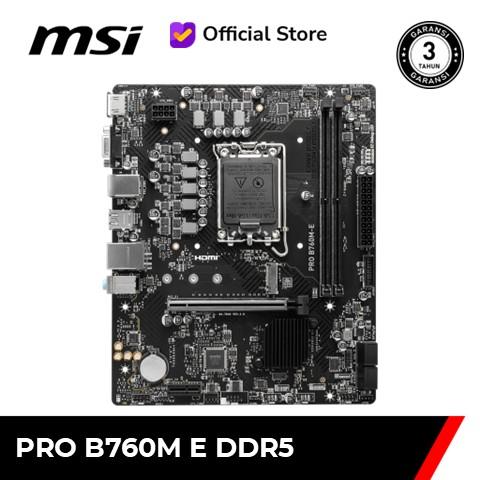

MSI PRO B760M-E DDR5 Motherboard [mATX | LGA 1700 | Gen 14]

PRO B760M-E
Mendukung Prosesor Intel Core Generasi ke-14/13/12, Prosesor Intel Pentium Gold dan Celeron untuk soket LGA 1700
Mendukung Memori DDR5, Dual Channel DDR5 6400+MHz (OC)
Core Boost: Dengan tata letak premium dan desain daya digital untuk mendukung lebih banyak inti dan memberikan kinerja yang lebih baik
Memory Boost: Teknologi canggih untuk memberikan sinyal data murni demi kinerja, stabilitas, dan kompatibilitas terbaik
Pengalaman Secepat Kilat: PCIe 4.0, Lightning Gen4 x4 M.2
PENINGKATAN AUDIO: Manjakan telinga Anda dengan kualitas suara sekelas studio untuk pengalaman bermain game yang paling imersif
Steel Armor: Melindungi kartu VGA dari pembengkokan dan EMI untuk kinerja, stabilitas, dan kekuatan yang lebih baik

Chipset INTEL B760
CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Memory 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Realtek RTL8111H Gigabit LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
HDMI
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
USB 2.0

OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
BOX CONTENT
PCB Info mATX
200mmx236.16mm
