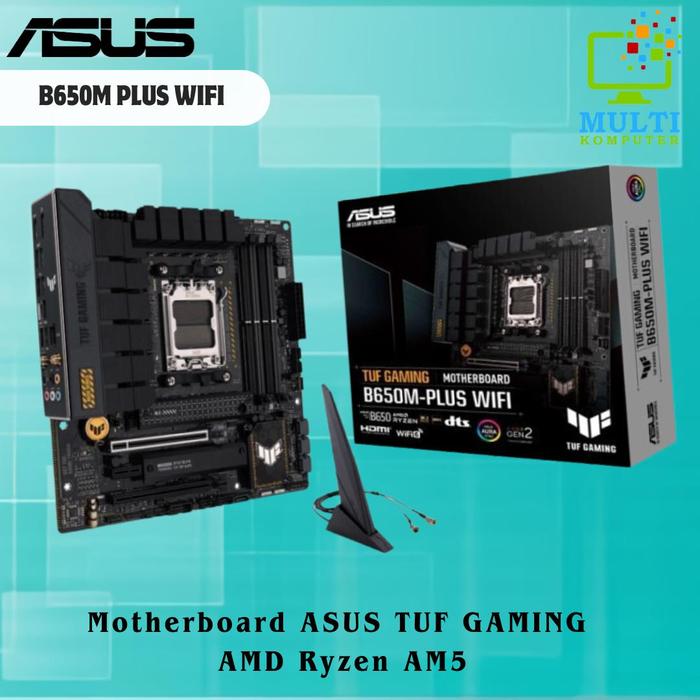

Motherboard ASUS TUF GAMING B650M PLUS WIFI Motherboard AMD B650 Ryzen AM5 - BLACK

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :
CPU

- AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

Chipset

- AMD B650
Memory

- 4 x DIMM, Max. 128GB, DDR5

- 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*

- Dual Channel Memory Architecture

- Supports AMD EXTended Profiles for Overclocking (EXPO™)

- OptiMem II
Graphics

- 1 x DisplayPort*

- 1 x HDMI® port**

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots

- AMD Ryzen™ 7000 Series Desktop Processors*

-- 1 x PCIe 4.0/3.0 x16 slot

- AMD B650 Chipset

-- 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)

-- 1 x PCIe 4.0/3.0 x1 slot

Storage

- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

- AMD Ryzen™ 7000 Series Desktop Processors

-- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

-- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

- AMD B650 Chipset

-- 4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet

- 1 x Realtek 2.5Gb Ethernet

- TUF LANGuard
Wireless & Bluetooth

- Wi-Fi 6

- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

- Supports 2.4/5GHz frequency band

- Bluetooth v5.2
Form Factor

- micro-ATX Form Factor

- 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
