INFRARED SENSOR TCRT5000 & IR 333 - IR 333
Rp1.800
Pilih ukuran: IR 333
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: KOMPONEN ELECTRONIK
** TCRT5000 Specifications
IR sensor with transistor output
Operating Voltage: 5V
Diode forward Current: 60mA
Output: Analog or digital data
Transistor collector current: 100mA (maximum)
Operating temperature: -25°C to +85°C
** Infra RED 333

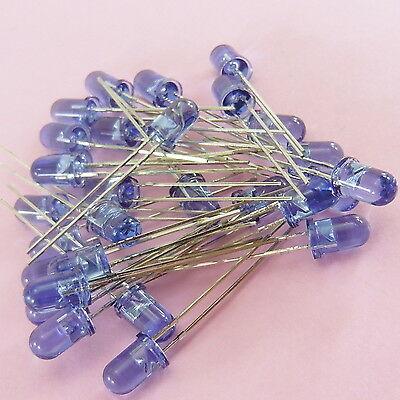

5mm IR LED emitter IR333-A Everlight
Blue Lense
View angle : 20 degree
Continuous Forward Current IF : 100 mA
Peak Forward Current(*1) IFP : 1.0 A
Reverse Voltage VR : 5 V
Operating Temperature Topr : -40 ~ +85
Storage Temperature Tstg : -40 ~ +100
Soldering Temperature(*2) Tsol : 260
Power Dissipation at(or below 25 Free Air Temperature) Pd : 150 mW
IR sensor with transistor output
Operating Voltage: 5V
Diode forward Current: 60mA
Output: Analog or digital data
Transistor collector current: 100mA (maximum)
Operating temperature: -25°C to +85°C
** Infra RED 333
5mm IR LED emitter IR333-A Everlight
Blue Lense
View angle : 20 degree
Continuous Forward Current IF : 100 mA
Peak Forward Current(*1) IFP : 1.0 A
Reverse Voltage VR : 5 V
Operating Temperature Topr : -40 ~ +85
Storage Temperature Tstg : -40 ~ +100
Soldering Temperature(*2) Tsol : 260
Power Dissipation at(or below 25 Free Air Temperature) Pd : 150 mW
