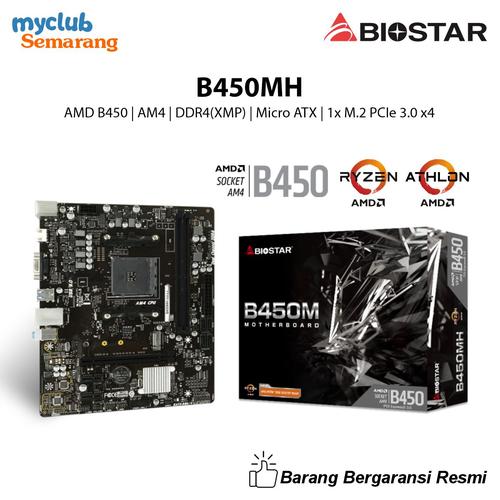

BIOSTAR B450MH Motherboard AMD B450 AM4 DDR4 XMP M2 NVME Micro ATX

Garansi Resmi NJT, 3 Tahun.

Chipset : AMD B450

CPU SUPPORT
Socket AM4 supports AMD Ryzen APU / Ryzen CPU
*Please refer to www dot biostar dot com dot tw for CPU support list.

MEMORY
2x DDR4 DIMM Memory Slot, Max. Supports up to 64GB Memory
Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz
Each DIMM supports non-ECC 8/16/32 GB DDR4 module
*Please refer to www dot biostar dot com dot tw for Memory support list.

INTEGRATED VIDEO
By CPU model
Supports DX12
Supports HDCP

STORAGE
4x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1x M.2 (32Gb/s):
Supports PCI-E & SATA SSD
*Specifications vary by CPU types

LAN
Realtek RTL 8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC
ALC897
7.1 Channels, High Definition Audio

EXPANSION SLOT 2 x PCIe 2.0 x1 Slots
1x PCIe 3.0 x16 Slot (When using APU, the bandwidth is x8 speed)
*Specifications vary by CPU types

REAR I/O
1 x PS/2 Keyboard/Mouse
4 x USB 3.2 Gen1 (5Gb/s) Ports
2 x USB 2.0 Ports
1 x HDMI Port
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

INTERNAL I/O
4 x SATA III 6.0Gb/s Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.1 Gen1 (5Gb/s) Header (each header supports 2 USB 3.1 Gen1 ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x COM Serial Header
1 x Clear CMOS Header

H/W MONITORING
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

DIMENSION
Micro ATX Form Factor Dimension: 19.8cm x 24.4cm ( W x L )

OS SUPPORT
Supports Windows 7(64bit) / 10(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE
BullGuard

ACCESSORIES
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
