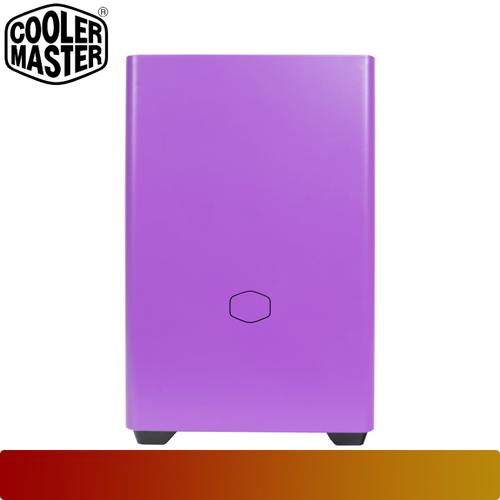

COOLER MASTER - MASTERBOX NR200P COLOR | Mini-ITX Case Tempered Glass - NightsadePurple

MODEL NUMBER
- MCB-NR200P-PCNN-S00 (Nightshade Purple)
- MCB-NR200P-OCNN-S00 (Sunset Orange)
- MCB-NR200P-ACNN-S00 (Caribbean Blue)
- MCB-NR200P-QCNN-S00 ( Flamingo Pink)

AVAILABLE COLOR(S)
- Purple/Black, Orange/Black, Cyan/White, Pink/White

MATERIALS
- Steel, Plastic, Mesh, Tempered Glass

DIMENSIONS (L X W X H)
- 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions

VOLUME (EXLC. PROTRUSIONS)
- 18.25L

MOTHERBOARD SUPPORT
- Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)

EXPANSION SLOTS
- 3

5.25" DRIVE BAYS
- 0

3.5" DRIVE BAYS
- 1 (Max. 2)

2.5" / 3.5" DRIVE BAYS (COMBO)
- 1

2.5" DRIVE BAYS
- 2 (Max. 3)

I/O PANEL
- 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)

PRE-INSTALLED FANS - TOP
- 2x 120mm 650-1800RPM PWM (SickleFlow)

PRE-INSTALLED FANS - FRONT
- N/A

PRE-INSTALLED FANS - REAR
- N/A

PRE-INSTALLED FANS - BOTTOM
- N/A

FAN SUPPORT - TOP
- 2x 120mm

FAN SUPPORT - REAR
- N/A

FAN SUPPORT - BOTTOM
- 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)

FAN SUPPORT - SIDE
- 2x 120/140mm

RADIATOR SUPPORT - TOP
- N/A

RADIATOR SUPPORT - REAR
-N/A

RADIATOR SUPPORT - BOTTOM
- 120mm, 240mm, (recommended for custom loops only)

RADIATOR SUPPORT - SIDE
- 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)

CLEARANCE - CPU COOLER
- 76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel)

CLEARANCE - PSU
- 130mm

CLEARANCE - GFX
- L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

DUST FILTERS
- Top, Bottom, Left side, Right side

POWER SUPPLY SUPPORT
- SFX, SFX-L

WARRANTY
- 2 years

WEIGHT
- 5.93 kg

ACCESSORIES
- 1x PCIe 3.0 x16 riser cable

NOTE
- Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position

SERIES
- MasterBox Series

SIZE
- Mini ITX
