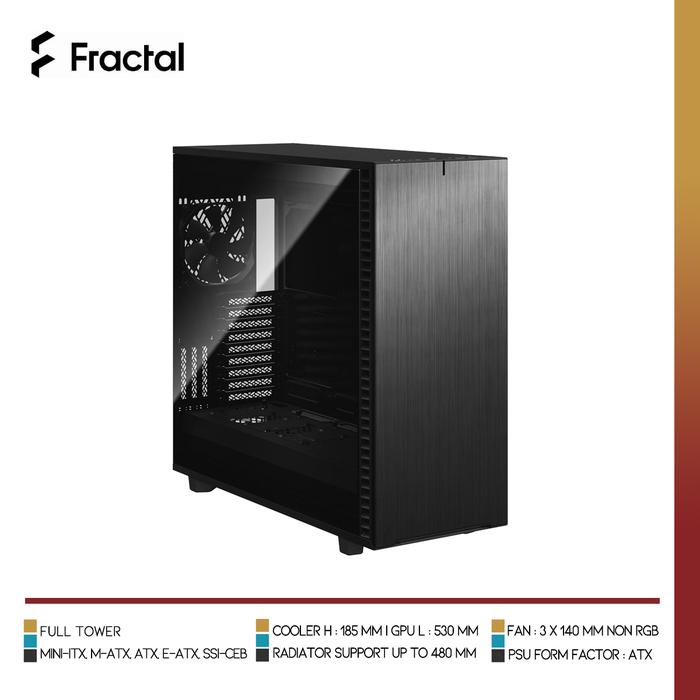

FRACTAL DESIGN Define 7 XL | E-ATX Full Tower PC Case - Black TG Dark

Specifications :

3.5"/2.5" Universal drive brackets
- 6 + 2 included, 18 positions total

Dedicated 2.5" drive brackets
- 2 included, 5 positions total

5.25 drive mounts
- 2

Expansion slots
- 9 + 3

Front ports
- 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button

Total fan mounts
- 11 x 120 mm or 9 x 140 mm

Front fan
- 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)

Top fan
- 4 x 120 mm or 3 x 140 mm

Rear fan
- 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)

Bottom fan
- 2 x 120/140 mm

Dust filters
- Top, 2 x Front, Bottom + PSU

Fixed velcro straps
- Yes

Cable routing grommets
- Yes

Captive thumbscrews
- HDD brackets, SSD brackets, PSU bracket

Left side panel
- Tempered Glass

Right side panel
- Industrial sound-damped steel

Motherboard compatibility
- E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB

Power supply type
- ATX

PSU max length
- 250 mm (both HDD cages installed)

GPU max length
- Storage layout: 359 mm - Open layout: 549 mm (524 mm w/ front fan)

CPU cooler max height
- 185 mm

Front radiator
- Up to 480/420 mm

Top radiator
- Up to 480/420 mm

Rear radiator
- 120 mm

Bottom radiator
- Up to 240/280 mm

Cable routing space
- 30 mm

Vertical GPU Support (with Flex B-20 or Flex VRC-25)
- 65mm total clearance, standard 2-slot GPU (
Case dimensions (LxWxH)
- 604 x 240 x 566 mm

Case dimensions w/o feet/protrusions/screws
- 590 x 240 x 548 mm

Package dimensions (LxWxH)
- 646 x 357 x 708 mm

Volume
- 77.6 liters

Package contents
- Define 7 XL
- Accessory box
- User manual
- Ventilated top panel
- ODD bracket
- ODD bay cover
- 2 x HDD/SSD trays
