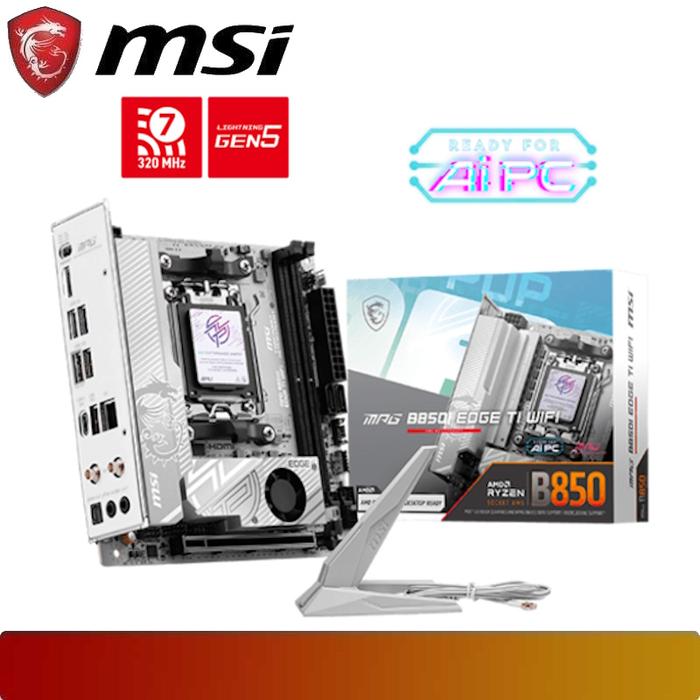

MSI MPG B850I EDGE TI WIFI | Motherboard AMD B850 AM5 DDR5 Mini-ITX

Specifications :

Chipset
- AMD B850

CPU
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- Socket AM5

Memory
- 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
- Supports Dual-Channel mode

Onboard Graphics
- 1x HDMI
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*

Slot
- 1x PCI-E x16 slot

Audio
- Realtek ALC4080 Codec
- 7.1-Channel USB High-Performance Audio
- Supports up to 32-Bit/384 kHz playback on front panel
- Supports S/PDIF output


Storage
- 2x M.2
- 2x SATA 6G

LAN
- 1x Realtek 8126 5G LAN

WIRELESS LAN & BLUETOOTH
- Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth 5.4**, MLO, 4KQAM


LED FEATURE
- 4x EZ Debug LED
- 1x EZ Memory Detection LED

OPERATING SYSTEM
- Support for Windows 11 64-bit

PCB Info
- Mini-ITX
- 170mmx170mm
