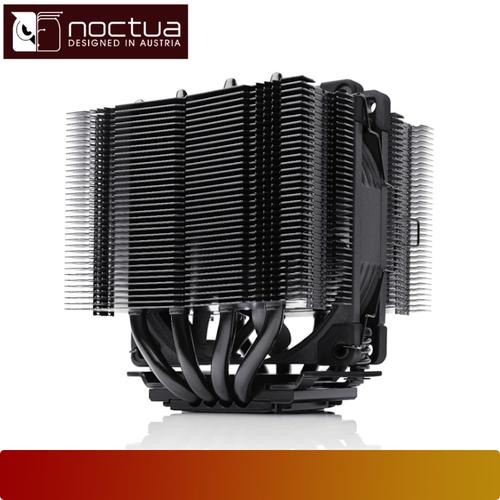

NOCTUA NH-D9L Chromax.Black |compact dual tower CPU cooler

:

Cooler Specification
Socket compatibility
- Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4

Height (without fan)
- 110 mm

Width (without fan)
- 95 mm

Depth (without fan)
- 95 mm

Height (with fan)
- 110 mm

Width (with fan)
- 95 mm

Depth (with fan)
- 95 mm

Weight (with fan)
- 531 g

Material
- Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR
- 88

Max. TDP
- see NSPR

Fan compatibility
- 92x92x25

Scope of delivery
- Black NH-D9L heatsink
- NF-A9 PWM chromax.black premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- Black SecuFirm2 mounting kit
- Black fan-clips for second NF-A9
- Noctua metal case-badge

Warranty
- 6 Years

FAN Specification
Model
- Noctua NF-A9 PWM chromax.black

Bearing
- SSO2

Max. rotational speed (+/- 10%)
- 2000 RPM

Max. rotational speed with L.N.A. (+/- 10%)
- 1550 RPM

Min. rotational speed @ 20% PWM (+/-20%)
- 400 RPM

Max. airflow
- 78,9 m/h

Max. airflow with L.N.A.
- 62,6 m/h

Max. acoustical noise
- 22,8 dB(A)

Max. acoustical noise with L.N.A.
- 16,3 dB(A)

Airflow
- 78.9 m/h

Airflow with L.N.A.
- 62.6 m/h

Acoustical noise
- 22.8 dB(A)

Input power (max.)
- 1,2 W

Voltage range
- 12 V

MTTF
- > 150.000 h

:
- : ..
- : @.
- : @
- :
- :
