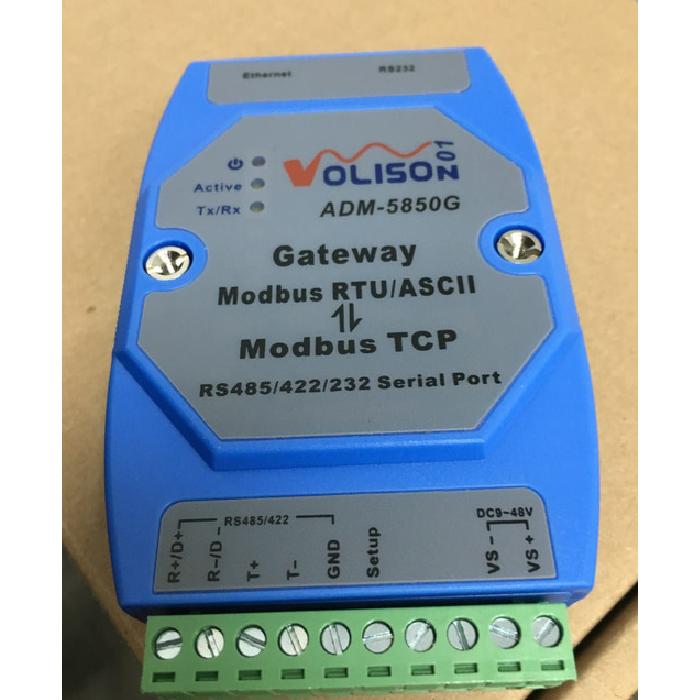

ModBus Gateway, RS232/422/485 to TCP IP
Rp1.370.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Converter
ADM-5850G
1, 32 ARM Cortex-m3 CPU;
2, 10/100M Ethernet interface (RJ45 interface);
3, support RS232, RS422, RS485 serial interface three optional, support the user to arbitrarily set thebaud rate 300~230400bps, RS-232 mode is the highest rate of 115Kbps, RS485 or RS422
The highest rate of 230400bps mode, serial data bits, stop bits, check bits can be set;
4, support agreements include: ETHERNET, ARP, IP, ICMP, IGMP, UDP, TCP, DHCP,
DNS, MODBUS TCP, MODBUS RTU, MODBUS ASCII;
5, to provide four kinds of work:
RTU_ Master--TCP_ Slaver
TCP_ Master--RTU_ Slaver
ASCII_ Master--TCP_ Slaver
TCP_ Master--ASCII_ Slaver
6, Mod bus TCP maximum support for the 4 connections;
7, to provide automatic adaptation of the character timeout;
8, provide ID mapping function, the host ID number management;
9, the working port, target IP and port can be set;
10, can use Web Server, Telnet, MG Configuration management software configuration, software support Windows98/me/NT/2000/XP/WIN7/WIN8/WIN10 operating system;
11, industrial design, long-term stability in the harsh environment;
12, input voltage: DC9~48V, maximum working current: 200 mA;
13, working temperature: -20~75 degrees C;
14, storage temperature: - 40 ~ 85 degrees C;
15, 35mm DIN rail installation.
===================================
User Manual : https://drive.google.com/file/d/1BG8NHIzTAcI8N0Z-725dWzJbJJuwL9g3/view?usp=sharing
User Manual :https://icedrive.net/0/2eOtBDOkZX
MG Configuration Software : https://icedrive.net/0/c7ejYIqesb
Modbus_Protocol_TestTool : https://icedrive.net/0/e4s43NAHtG
==========+=========+=============
Before ordering, please read carefully the title and description
===================================
Warranty: 1 Year
