MODBUS RTU RS485 - Current 0-20mA / 4-20ma to Modbus RTU RS485
Rp680.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: OTOMASI

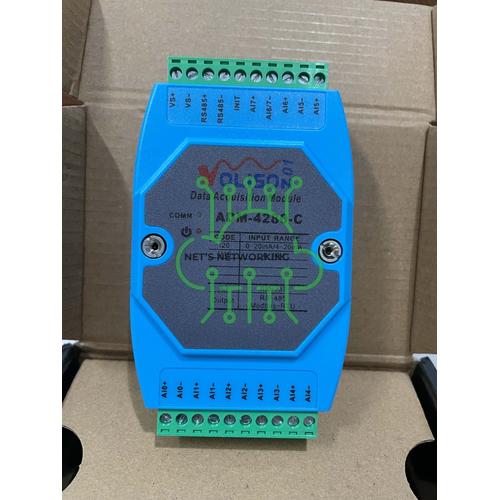

ADM-4280-C 8AI Aquisition Module
ADM-4280-C is an 8-channel 0~20mA/4-20mA analog signal data acquisition module, which can be widely used in the signal acquisition and monitoring of industrial field equipment. When I20, it means that the analog quantity is 0~20mA/4-20mA current input. The analog signal adopts single-ended input mode, and the communication interface adopts RS-485 interface, supports standard MODBUS-RTU protocol, and can be directly connected with configuration software, PLC, DCS industrial control touch screen, etc.
Product specifications :
(1), analog input
1. Input channel: 8 single-ended inputs
2. Input range: I20: 0~20mA/4-20mA current signal
3. ADC resolution: 16Bit, reduced to 15Bit for use
4. Conversion rate: 10 times/sec (full channel)
5．Measurement accuracy: better than ±0.1%
6．Sampling resistance: 12 ohms/0.1% (current)
(2), communication interface
1. Communication protocol: MODBUS-RTU protocol
2. Interface type: optically isolated RS-485 interface
3. Interface protection: 600W surge protection, 15KV ESD protection, 1500V isolation protection
3. Baud rate: 1200/2400/4800/9600/19200/38400/57600/115200 BPS
4．Parity bit: no parity, even parity, odd parity
5. Default parameters: 9600, N, 8, 1 (baud rate and parity bit can be modified)
(3), system parameters
1. Module size: 104mm x 72mm x 26mm
2. Installation method: 35mm DIN rail installation
3. Working environment: Temperature: -10~60℃ Humidity: 0-95%, non-condensing
4. Working power supply: DC9~30V less than 1W
module indicator definition
1. POWER: Power status indicator, always on/power supply is normal
2. COMM: RS-485 interface communication indicator, flashing/module is sending and receiving data
using default communication parameter.
=========================
Power Adaptor NOT Included
Software and User Manual Download Link :
https://icedrive.net/s/g27ZuAvug4CW8g74VWijAAXxDGP3
ADM-4280-I20+
ADM-4280-C is an 8-channel 0~20mA/4-20mA analog signal data acquisition module, which can be widely used in the signal acquisition and monitoring of industrial field equipment. When I20, it means that the analog quantity is 0~20mA/4-20mA current input. The analog signal adopts single-ended input mode, and the communication interface adopts RS-485 interface, supports standard MODBUS-RTU protocol, and can be directly connected with configuration software, PLC, DCS industrial control touch screen, etc.
Product specifications :
(1), analog input
1. Input channel: 8 single-ended inputs
2. Input range: I20: 0~20mA/4-20mA current signal
3. ADC resolution: 16Bit, reduced to 15Bit for use
4. Conversion rate: 10 times/sec (full channel)
5．Measurement accuracy: better than ±0.1%
6．Sampling resistance: 12 ohms/0.1% (current)
(2), communication interface
1. Communication protocol: MODBUS-RTU protocol
2. Interface type: optically isolated RS-485 interface
3. Interface protection: 600W surge protection, 15KV ESD protection, 1500V isolation protection
3. Baud rate: 1200/2400/4800/9600/19200/38400/57600/115200 BPS
4．Parity bit: no parity, even parity, odd parity
5. Default parameters: 9600, N, 8, 1 (baud rate and parity bit can be modified)
(3), system parameters
1. Module size: 104mm x 72mm x 26mm
2. Installation method: 35mm DIN rail installation
3. Working environment: Temperature: -10~60℃ Humidity: 0-95%, non-condensing
4. Working power supply: DC9~30V less than 1W
module indicator definition
1. POWER: Power status indicator, always on/power supply is normal
2. COMM: RS-485 interface communication indicator, flashing/module is sending and receiving data
using default communication parameter.
=========================
Power Adaptor NOT Included
Software and User Manual Download Link :
https://icedrive.net/s/g27ZuAvug4CW8g74VWijAAXxDGP3
ADM-4280-I20+
