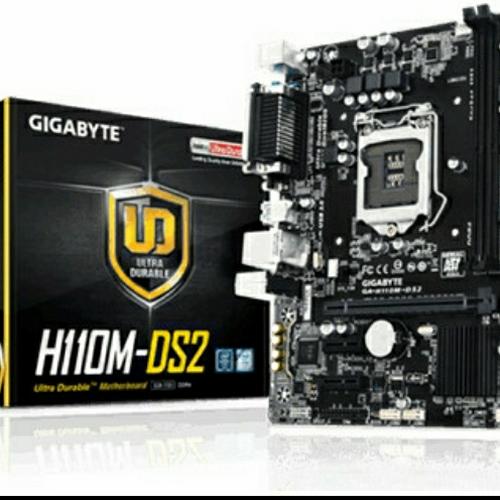

Mainboard Gigabyte H110M DS2

Prosesor :

- Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package

- L3 cache varies with CPU

Chipset : Intel H110 Express Chipset

Memori :

- 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

- Dual channel memory architecture

- Support for DDR4 2400/2133 MHz memory modules

- Support for ECC UDIMM 1Rx8/2Rx8 memory modules

- Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Onboard Graphics :

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200

- Maximum shared memory of 1024 MB

Audio :

- Realtek ALC887 codec

- High Definition Audio

- 2/4/5.1/7.1-channel

LAN : Realtek GbE LAN chip (10/100/1000 Mbit)

Slot Tambahan :

- 1 x PCI Express x16 slot, running at x16

- 2 x PCI Express x1 slots

Storage Interface : 4 x SATA 6Gb/s connectors

USB :

- 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Konektor I/O Internal :

- 1 x 24-pin ATX main power connector

- 1 x 4-pin ATX 12V power connector

- 4 x SATA 6Gb/s connectors

- 1 x CPU fan header

- 1 x system fan header

- 1 x front panel header

- 1 x front panel audio header

- 1 x S/PDIF Out header

- 1 x USB 3.0/2.0 header

- 2 x USB 2.0/1.1 headers

- 1 x Trusted Platform Module (TPM) header

- 1 x Clear CMOS jumper

Pengontrol I/O : iTE I/O Controller Chip

Paket Sofware :

- Norton Internet Security (OEM version)

- cFosSpeed

Sistem Operasi :

- Windows 10 64-bit (for 7th Generation Intel Processors)

- Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors)

Form Factor : Micro ATX Form Factor; 22.6cm x 17.4cm

Garansi 3 Tahun

Silahkan tanyakan Ketersediaan stock sebelun diorder
