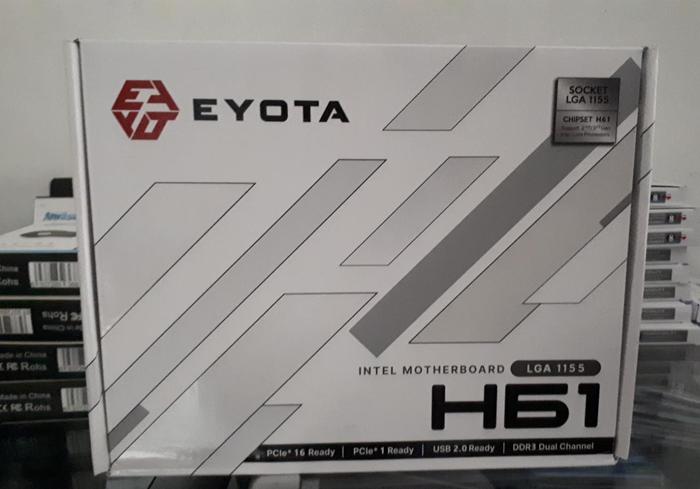

Mainboard Eyota H61 (NVME) NEW

MotherBoard EYOTA H61 LGA 1155-Mainboard PC Rakitan-Mainboard Rakitan
Ada yang baru lagi nih kak Mainboard EYOTA H61 Socket 1155 DDR3, cocok banget buat kakak yang mau merakit komputer dan lagi cari mainboard murah kualitas baguss.

Mendukung memori DDR3
Soket intel LGA 1155
CPU yang didukung: prosesor Pentium seri i3, i5, i7
Chipset Northbridge dan Chipset Southbridge telah terintegrasi dalam satu chipset, yang disebut chipset H61.

Port bawaan mainboard :6 port Usb, port Hdmi,port vga,audio.
VGA Onboard: VGA dan Lan terintegrasi di papan.
LAN: chip lan 1000/100M terpasang.

Spesifikasi di bawah ini ya kakak kakak:
- Processor Support : Intel LGA 1155 2nd/3rd Generation Celeron/Pentium/Core i3/i5/i7
- Chipset : Intel H61 Chipset
- Memory Support : 2DIMM Slots, Dual Channel DDR3 1066/1333/1600 MHz up to 16 GB
- LAN : Realtek 10/100 Mbps LAN onboard
- Audio : Realtek ALC 6-channal HD Audio Codec onboard
- Storage Support : 4* Sata 2.0 Ports
1* PCle-M.2 NVMe
- Expansion Slots : 1* PCle-Ex16, 1* PCle-Ex1
- USB : 6* USB 2.0 port
2* USB connector on board
- Back Panel : 6* USB 2.0
1* VGA port
1* HDMI port
1* RJ45 port
1* 3-in 1 Audio port(line in/line out/MIC in)
- On Board Connectors : 1* 24 pin ATX power connector
1* 4-pin ATX 12V power connector
2* USB connector can support 4* USB 2.0
1* F-AUDIO connector
1* F-PANEL connector
1* F-SPEAKER connector
1* FAN connector
1* LPC-DEBUG connector
- Form Factor : Micro-ATX (170mm*190mm)

GARANSI RESMI EYOTA
