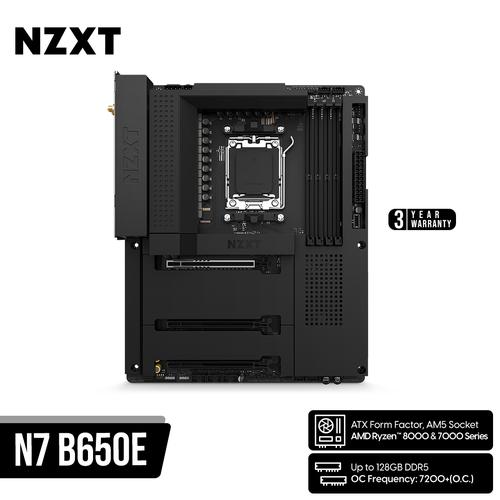

NZXT N7 B650E AMD ATX Motherboard with Wi-Fi and NZXT CAM Features - Hitam

Leverage the full value of your AMD Ryzen 8000 and 7000 Series Processors with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.

Maximum Control:
Easily customize lighting and cooling modes via NZXT CAM, with access to six RGB lighting channels. Configure lights and fans from any manufacturer.
Finishing Touch:
A white or black metal cover conceals the inner workings, blending seamlessly with your case. The heat fins have been expanded to cool the PCIe Gen 5 enabled NVMe drive slot.
Ready To Rock:
Integrated Wi-Fi 6E, rear I/O shield, and clever port placement makes the build process easy—plenty of room on board for upgrades down the line.
Stunning Craftsmanship:
Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your components.
CPU and Socket:
Supports AMD Socket AM5 for AMD Ryzen 8000 and 7000 Series Processors.
- 16+2+1 Power phase design with 90A Smart Power Stage
- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels

TECH SPECS
CPU
Supports AMD Socket AM5 for AMD Ryzen 8000 and 7000 Series Processors:Supported

CHIPSET
AMD:B650E

MEMORY
DIMM Slots:4, DDR5 only
Max Memory Support:128GB
Memory Architecture:Dual-Channel
OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC). Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information.
Extreme Memory Profile (XMP):Supported
EXTended Profiles for Overclocking (EXPO):Supported

EXPANSION SLOTS
PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1

INTEGRATED GRAPHICS
Integrated AMD RDNA 2 graphics:Supported
HDMI 2.1 TMD Compatible:1
HDR:Supported
HDCP 2.3:max. resolution up to 4K 60Hz

STORAGE
M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode):1
M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1
M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1
SATA 6Gb/s ports:4
RAID 0/1/10 for SATA storage devices:Supported
RAID 0/1/10 for M.2 NVMe storage devices:Supported
NVMe SSD as boot disks:Supported

LAN
Realtek:RTL8125BG 2.5G LAN

WIRELESS
802.11ax Wi-Fi 6E Module:Supported
Bluetooth:V5.2

AUDIO
Realtek:ALC1220 Codec

REAR I/O
Wireless antenna SMA connectors:2
HDMI port:1
USB 2.0:2
USB 3.2 Gen 2 Type-C port:1
USB 3.2 Gen 2 ports:2
USB 3.2 Gen 1 ports:4
Clear CMOS button:1
BIOS Flashback button:1
LAN (RJ45) port:1
Audio jacks:5
Optical S/PDIF Out port:1

INTERNAL I/O
24-pin ATX power connector:1
8+4-pin ATX 12V power connector:1
4-pin CPU_FAN connector:1
4-pin AIO_PUMP connector:1
4-pin SYS_FAN connectors:5
NZXT RGB LED connectors:4
5V ARGB LED connector:2
USB 2.0 header (Up to 6 USB 2.0 ports):3
USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2
USB 3.2 Gen2x2 front panel header (For USB Type-C):1
Front panel audio connector:1
Power button:1
Reset button:1
POST LEDs:4

GENERAL
System Requirements:NZXT CAM software requires Microsoft Windows 11/10 operating system.
Form Factor:ATX

Warranty:3 years

Certifications:FCC, CE, WHQL, ErP/EuP Ready
