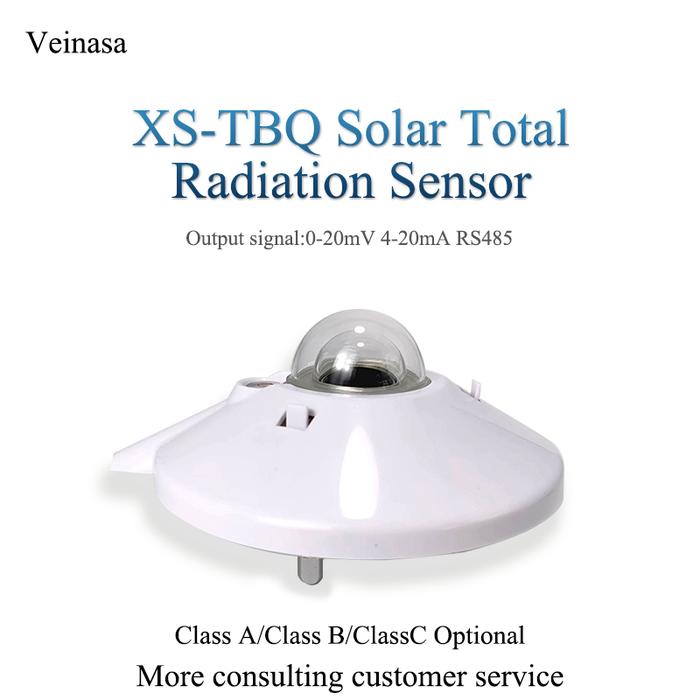

Veinasa XS-TBQ02A Pyranometer First Class Solar Radiation Meter Irradiance Sensor Solar Total Radiation Sensor Class A Class B
Rp17.431.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Product Introduction
The total radiation sensor is used to measure the solar radiation received from the horizontal plane at a 2π spherical angle (hemispherical direction) in w/m2. XS-TBQ02A total radiation sensor is completely passive, using a thermopile sensor to generate an output voltage proportional to the incident radiation flux. Due to the use of two spherical glass enclosures, the measurement error, especially the thermal offset, is reduced, so the sensor has higher measurement accuracy.
Technical parameters
Model
XS-TBQ02A
XS-TBQ02
XS-TBQ02C
Sensitivity
7-14μV/(W/m²)
7-14μV/(W/m²)
7-14μV/(W/m²)
Spectral range
280-3000nm
280-3000nm
280-3000nm
Measuring range
0～2000W/㎡
0～2000W/㎡
0～2000W/㎡
Internal resistance
<30Ω
<50Ω
Response time
<6s
<10s
Product weight
0.8KG
0.8KG
0.5KG
Operating ambient temperature
-40～+80℃
Long line
3M
Specifications:
Hign-concerned Chemical: None
Model Number: XS-TBQ02A
Brand Name: Veinasa
Certification: none
Origin: Mainland China
Resistance: <30Ω
Measuring range: 0~2000 W/m²
The total radiation sensor is used to measure the solar radiation received from the horizontal plane at a 2π spherical angle (hemispherical direction) in w/m2. XS-TBQ02A total radiation sensor is completely passive, using a thermopile sensor to generate an output voltage proportional to the incident radiation flux. Due to the use of two spherical glass enclosures, the measurement error, especially the thermal offset, is reduced, so the sensor has higher measurement accuracy.
Technical parameters
Model
XS-TBQ02A
XS-TBQ02
XS-TBQ02C
Sensitivity
7-14μV/(W/m²)
7-14μV/(W/m²)
7-14μV/(W/m²)
Spectral range
280-3000nm
280-3000nm
280-3000nm
Measuring range
0～2000W/㎡
0～2000W/㎡
0～2000W/㎡
Internal resistance
<30Ω
<50Ω
Response time
<6s
<10s
Product weight
0.8KG
0.8KG
0.5KG
Operating ambient temperature
-40～+80℃
Long line
3M
Specifications:
Hign-concerned Chemical: None
Model Number: XS-TBQ02A
Brand Name: Veinasa
Certification: none
Origin: Mainland China
Resistance: <30Ω
Measuring range: 0~2000 W/m²
