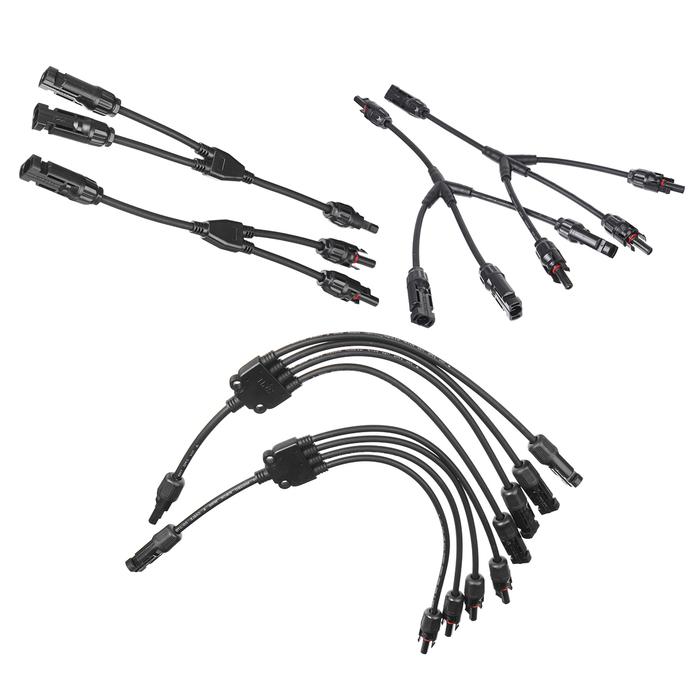

PL MC4 Y Branch Solar Panel Cable Connector Adapter MC4

MC4 Y Branch Solar Panel Cable Connector Adapter MC4 Photovoltaic Waterproof Solar Connecter Solar Power Supply Cable Wire * Produk ini tidak mendukung pembayaran sistem COD * Mohon chat untuk mendapatkan harga Special * Produk ini pre order dengan pengiriman 7-15 hari dari Singapore * Mohon dokumentasikan saat membuka kemasan seperti video UNBOXING * Terima kasih dan Jangan Lupa Follow Toko kami ya, Happy Shopping Feature:It can be used in harsh environmentCreated seal, design of dust proofStrong pulling force capabilityLower contact resistanceLoad capability with big current and high voltageDouble seal rings for better waterproof effectWith excellent aging resistance and UV enduranceCompatible with PV cables with different insulation diametersResistance of extra high amp; low temperature and fireproofQuick amp; simple assembly processing and simple removal of plugs without the aid of any extra instrumentSpecification:Model: 2 to 1Rated current: 20A(4mm²)30A(6mm²)Rated voltage: 1000V DCContact resistance: 2mΩInsulation resistance : 500mΩSuitable single core cable section: 2.5mm2, 4mm2, 6mm2Cable outer diameter: Φ5mm~Φ 7mmConnector insulation material: PPODegree of protection: IP67Safety: IIOperating temperature range: -40 ~ +105 ℃Model:3 to 1Rated voltage: TUV1000 V DC /UL 600V DCCurrent: 20A~30AWire gauge:2.5mm²~6mm² / 14AWG~10AWGTerminal specification:φ4.0mmHigh voltage:TUV6000 V AC(1 min) /UL 2200V DC(1 min)Safety: IIConnector conductor material: Copper,Silver PlatedContact resistance: ≤5mΩMaterial: PPODegree of protection: IP68(IEC 60529)Temperature rating: -40 degree ~ +85 degreeFlame Retardant Grade: UL94V-OModel: 4 to 1main cable specification: 2.5~6mm2 / 14AWG ~ 10AWGBranch cable specification: 4mm2(AWG12)Rated Current: 20A~30ARated voltage: TUV 1000VDC/UL 600VDCWithstanding Voltage POL1584257
