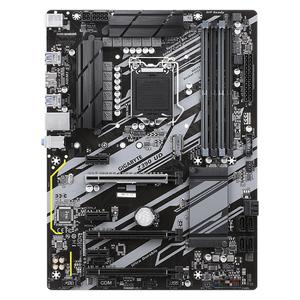

Used Gigabyte GA Z390 UD Motherboard LGA 1151 Z390 Desktop Mainboard M.2 nvme PCI-E X16 With Box

Brand Name : Gigabyte
Special Function : Support For Overclocking
Origin : Mainland China
Application : Desktop
Chipset : Intel Z390
Socket Type : LGA 1151
Chipset Manufacturer : Intel
Package : No
With CPU : No
Maximum Ram Capacity : 128 GB
Quality Certification : ce
Support Memory Type : DDR4
Usage Scenario : Enthusiast & Overclocking,Gaming,Audio & Video,Household
Storage Interface Type : SATA,M.2 (NVMe)
PCI - E standards : PCI - E 3.0
Back I/O Ports : 1x RJ45,HDMI 1.4
Number of PCI : 2
Onboard LAN : 1x RJ45
Processor compatibility : 8th Intel Core i5,9th Intel Core i3,9th Intel Core i5,8th Intel Core i7,9th Intel Core i9,8th Intel Core i9,8th Intel Core i3
RAID Supported : no


Supports 9th and 8th Gen Intel Core Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

New 10+2 Phases Digital PWM Design

NVMe PCIe Gen3 x4 22110 M.2 Connector

Multi-Way Graphics Support with PCIe Armor and Ultra Durable Design

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

Support RGB Light Strip in Full Colors

CEC 2019 Ready, Save Power With a Simple Click

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Lightning-Fast Intel Thunderbolt 3 AIC Support

Intel Optane Memory Ready

CPU
Support for 9th and 8th Generation Intel
Core i9 processors/Intel
Core i7 processors/Intel
Core i5 processors/Intel
Core i3 processors/Intel
Pentium
processors/Intel
Celeron
processors in the LGA1151 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset
Intel
Z390 Express Chipset

Memory
4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
** Please note that the support for system total memory size depends on the CPU installed.

Dual channel memory architecture

Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics
Integrated Graphics Processor-Intel
HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB
Actual support may vary by CPU.

Audio
Realtek
ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN
Realtek
GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)

3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel
Optane Memory Ready

USB
Chipset:
8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports available through the internal USB header

Internal I/O Connectors
1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x M.2 Socket 3 connector

6 x SATA 6Gb/s connectors

1 x CPU fan header

3 x system fan headers

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.1 Gen 1 header

1 x USB 2.0/1.1 header

1 x S/PDIF Out header

1 x Thunderbolt add-in card connector

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x HDMI port

6 x USB 3.1 Gen 1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller
iTE
I/O Controller Chip

H/W Monitoring
Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS
1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for APP Center
* Available applications in APP Center may vary by
