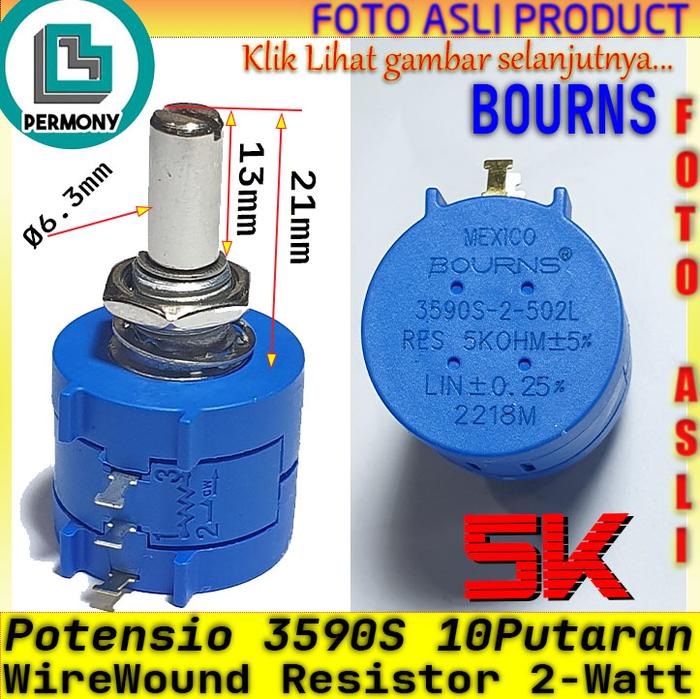

3590S Wirewound Potentiometer 2K 5K 10K 20K 50K 100K potensio 3590 Bourns - 5K

Rp21.000

Pilih model: 5K

    Silahkan Pilih divarian Nilai yang dikehendaki. Electrical Characteristics1 Standard Resistance Range 200 to 100 K ohms Total Resistance Tolerance ±5 % Independent Linearity ±0.25 % Effective Electrical Angle 3600 ° +10 °, -0 ° Absolute Minimum Resistance 1 ohm or 0.1 % maximum (whichever is greater) Noise 100 ohms ENR maximum Dielectric Withstanding Voltage (MIL-STD-202, Method 301) Sea Level 1,500 VAC minimum Power Rating (Voltage Limited By Power Dissipation or 450 VAC, Whichever is Less) +40 °C : 2 watts Insulation Resistance (500 VDC) 1,000 megohms minimum RPM (Operating) 200 maximum ★Paket yg didapat★ 1 pcs ★WTH118-1A Carbon Film Potentiometer 1K 2.2K 4.7K 10K 22K 47K 100K 470K 1M potensio★
