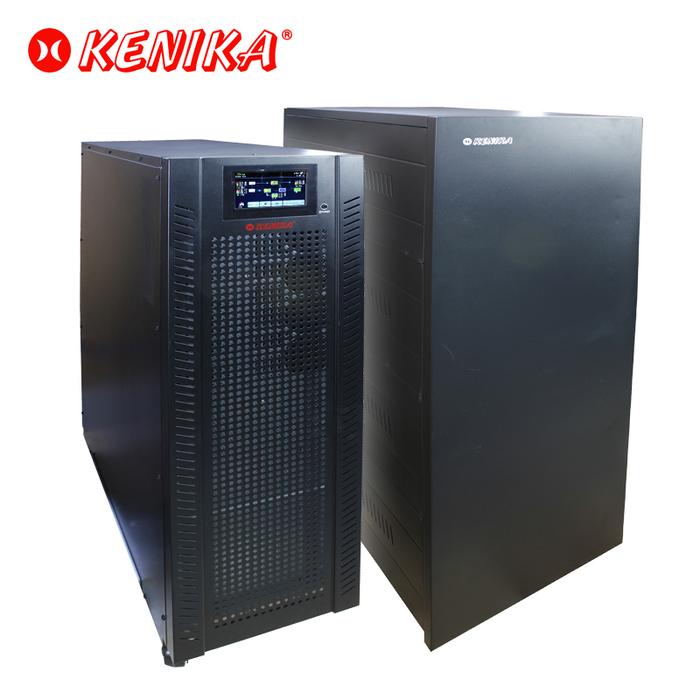

KENIKA UPS MS-30KVA 3:3 PHASE

UPS Kenika MS-30KVA versi terbaru ini menggunakan sistem baterai Center Tab 3 Terminal (Positif, Netral, Negatif) dan sudah dilengkapi dengan teknologi DSP yang mampu mengontrol secara presisi serta memastikan UPS untuk selalu bekerja pada kondisi prima. Selain itu UPS ini juga dilengkapi dengan layar LCD Touchscreen untuk memudahkan kita saat mengontrol dan mengoperasikan.

UPS Kenika MS-30KVA versi terbaru ini memiliki Output Power Factor 1 dan dengan efisiensi lebih dari 95%. Sangat cocok digunakan untuk peralatan medis, server komputer, perkantoran, dan beban elektronik sensitif lainnya.



FEATURES

DSP Technology Guarantees High Reliability
Output Power Factor 1
Active Power Factor Correction in All Phases
ECO Mode Operation for Energy Saving
Emergency Power Off Function (EPO)
High Overload Capability
Adjustable Charging Current
Very Powerful Charger
Parallel Operation with Common Battery
Power Walk-in Function


NOTE
* Baterai yang digunakan 32PCS 12V 24Ah


SPECIFICATIONS

MODEL : MS-10KVA
Phase : 3-Phase INPUT / 3-Phase OUTPUT
Capacity : 30KVA / 30KW
Paralel Capability : Up to 6 units in parallel
INPUT
Nominal Voltage : 3 × 380VAC (3Ph+N)
Voltage Range : 110-300VAC @ 50% Load; 176-276VAC @ 100% Load
Frequency Range : 40-70Hz
Power Factor : 0.99 @ 100% Load
Harmonic Distortion (THDi) : < 3% at Full Linear Load
OUTPUT
Output Voltage : 3 × 380VAC (3Ph+N)
AC Voltage Regulation (Battery Mode) : ± 1%
Frequency Range (Synchronized) : 46-54Hz or 56-64Hz
Frequency Range (Battery Mode) : 50Hz ± 1%
Current Crest Ratio : 3 : 1 (max.)
Harmonic Distortion : ≤ 2% THD (Linear Load); ≤ 5% THD (Non-Linear Load)
Transfer Time : AC Mode to Battery Mode Zero; Inverter to Bypass Zero
Waveform (Battery Mode) : Pure Sine Wave
Overload Capability : 100-110% for 60 minutes, 111-125% for 10 minutes, 126-150% for 1 minute, >150% for 400ms
BYPASS
Nominal Voltage : 3 × 380VAC (3Ph+N)
Voltage Range : -30% ~ +20% (Adjustable)
Frequency Range (Synchronized Range) : 46-54Hz or 56-64Hz
Overload Capability : >130% 1 minute (Default), Continuously working until breaker protection (Optional)
EFFICIENCY
AC Mode : 96.0%
ECO Mode : 99.0%
Battery Mode : 96.0%
BATTERY
Battery Type : Lead Acid
Capacity : 12V 24Ah
Numbers : 32 pcs
Typical Recharge Time : 9 hours recover to 90% capacity
Charging Current (max.) : 1A ~ 2A (Adjustable)
Charging Voltage : ± 13.65VDC*N (N=32~40)
INDICATORS
7" Touch Color LCD Panel : UPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge Timer, and Fault Conditions
PHYSICAL
Unit Dimensions (D×W×H) : 780×300×1000 mm
Nett Weight UPS Only : 59 kgs
Gross Weight UPS Only : 105 kgs
MCB Box Weight : 4 kgs
Total Battery Weight : 258 kgs
Battery Bank Weight : 35 kgs
ENVIRONMENT
Operation Temperature : 0-40°C
Operation Humidity : < 95% and Non-Condensing
Altitude** : 0 ~ 1500m at Full Load
Noise Level : Less than 60dB @1 meter
MANAGEMENT
Smart RS232/USB : Support Windows 2000/2003/XP/Vista/2008/7/8, Linux, and MAC
Optional SNMP : Power management from SNMP manager and web browser
