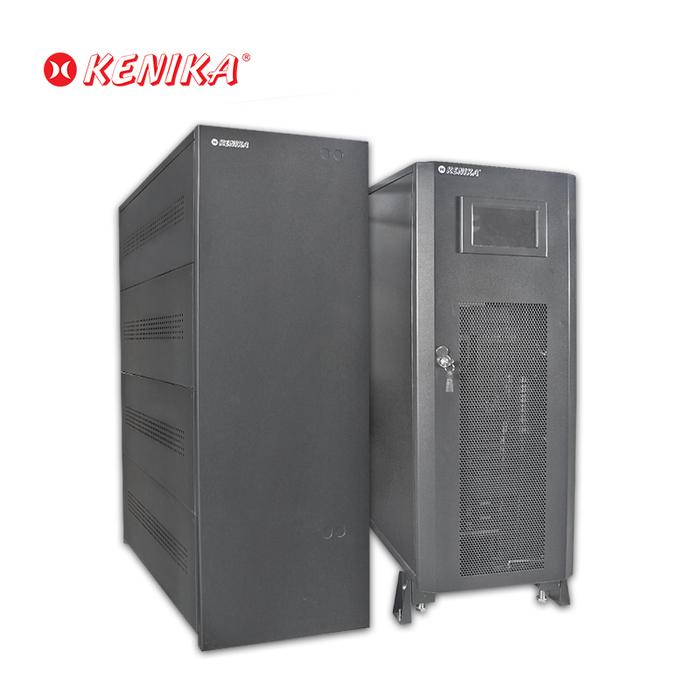

KENIKA UPS MS-40KVA 3:3 PHASE

* HARGA PRODUK : Rp 135.000.000 (Belum termasuk packing kayu tambahan)


UPS online MS-40KVA menghasilkan tegangan output yang sangat stabil saat terjadi perpindahan dari listrik utama/PLN ke baterai dan mempunyai gelombang sinus murni, sama seperti gelombang listrik yang dihasilkan oleh PLN. Penggunaan UPS MS-40KVA sangat direkomendasikan untuk beban yang sensitif seperti peralatan laboratorium, peralatan kedokteran, komputer server atau beban sensitif lainnya.

UPS MS-40KVA memiliki fitur ECO Mode yang memberikan efek hemat energi serta memiliki proteksi terhadap pengisian berlebih, pelepasan daya berlebih, korsleting, beban berlebih, dan proteksi lonjakan arus listrik.

*Baterai yang digunakan 30Pcs 12V 24Ah
*Size Casing Battery Bank C-12 setelah dirakit 470×1190×780 mm (4 Susun/Layer).



FEATURES:

Online double-conversion with full DSP control
IGBT inverter with output isolation transformer
100% unbalance load capability
Output power factor 0.9
Generator compatible
Support battery cold start and auto-restart when mains power is restored
ECO mode operation for energy saving
Superior protection
5.7 inches LCD touchscreen, friendly human and machine interface
Intelligent self-diagnosing function, all-kinds of failure protection, large capibility of history records storage
High MTBF (>200,000h)
Low MTTR (<0.5h)
Standard Emergency Power Off (EPO)


Specifications:

MODEL : MS-40KVA
Phase : 3-Phase In/3-Phase Out
Capacity : 40kVA/36kW
INPUT
Rated Voltage : 380Vac
Voltage Range : ±25%
Rated Frequency : 50/60Hz
Frequency Range : 50/60Hz ± 5Hz
Power Factor : ≥ 0.95 (with Filter)
Bypass Voltage Range : ±20%
Delayed Start of Rectifier : 1~300s (Settable via Display Panel)
ECO Voltage Range : ±10%
OUTPUT
Voltage : 380Vac
Voltage Regulation : ±1%
Frequency : Synchronized with utility in mains mode; 50/60Hz ± 0.1% battery mode
Waveform : Sinusoidal
Power Factor : 0.9
Crest Factor : 3:1
Total Harmonic Distortion (THDV) : ≤ 2% (Linear Load); ≤ 5% (Non-Linear Load)
Transfer Time : AC Mode to Battery Mode: 0ms; Inverter Mode to Bypass Mode: 0ms; Inverter Mode to ECO Mode: 5~10ms
Overload 105%: Long Time Running, 105% ~ 110% for 1h, 110% ~ 125% for 10 min, 125% ~ 150% for 1 min, 150% ~ 200% for 200ms, >200% for 100ms
Slight Adjusment of Inverter Output Voltage ±5V
BATTERIES
DC Voltage : 12V 24Ah
Number of Battery : 30pcs
Battery Voltage : 360VDC
Charging Current : 10A
Charging : Three-Stage Charging, Auto Switch Floating/Equalizing Charge
Battery State Display : Display Battery Backup Time, Battery Remaining Capacity
Battery Self-Test : Settable Periodic Self-Test; Manually Configurable Test Time and Voltage
SYSTEM
Efficiency : In Line Mode: Max. 93%; ECO Mode: ≥98%
Max. Parallel Number : 6
Protections : Short-Circuit, Overload, Over-Voltage, Under-Voltage, Low Battery, Over Temperature, Fan Fault
Communications : RS232/RS485/Dry Contacts (Standard), SNMP (Optional)
IP Rating IP20
EMI : EN62040-2
EMS : IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge)
OTHERS
Humidity : 0~95% RH @ 0~40°C (Non-Condensing)
Noise Level : 55dB
UPS Dimension (D×W×H) : 435×865×1125 mm
Package Dimension (D×W×H) : 490×920×1250 mm
Nett Weight (UPS Only) : 260 kg
Gross Weight (UPS Only) : 302 kg
