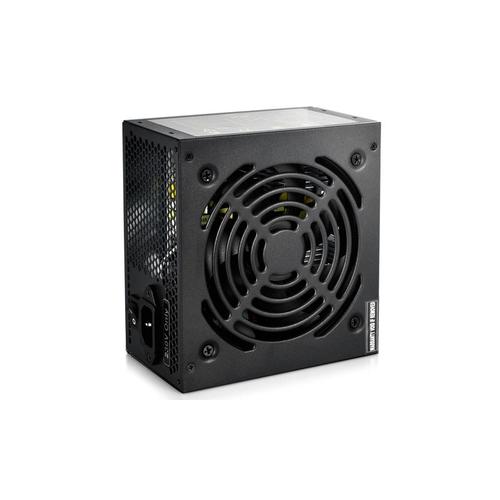

PSU DeepCool 500W 80+ DN500 Flat Cable 500 W Power Supply Deep Cool

DEEPCOOL DN500 80 Plus

Compliant Intel ATX12V v 2.31
The integrated Active PFC+ PWM Combo Controller will increase the efficiency of
exchange and make PFC higher than 99%
Up to 80% efficiency
120mm silent fan with temperature control function
The longer black flat cable design supports cable management perfectly
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
Intelligentized eco-friendly chipset, consume < 0.3W in its off-mode, compliant Erp standard
CircuitShield? OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs

Technical Spec
Model : DN500 (Black flat cable)
Type : ATX 12V V2.31
Dimension : 15014086mm (W x L x H)
Output Capacity : 500W
Input Voltage : 160-230V
Input Current : 4A
Input Frequency Range : 50~60Hz
Fan Size : 120mm
PFC : Active PFC (>0.99)
Power Good Signal : 100-500ms
Hold Up Time : >16ms
Efficiency : 80% Under Typical Load
Protection : OVP/UVP/SCP/OPP
Operation Temperature : 0~40C
Regulatory : CE/CB/EAC/CCC
MTBF : 100,000 Hours

Cables :
Main Power Connector (24Pin) x1
Main EPS 12V Connector 8(4+4)Pin x1
PCI-E (6+2Pin) x2
SATA x5
Peripheral (Big 4Pin) x3

Garansi Resmi 2 Tahun
