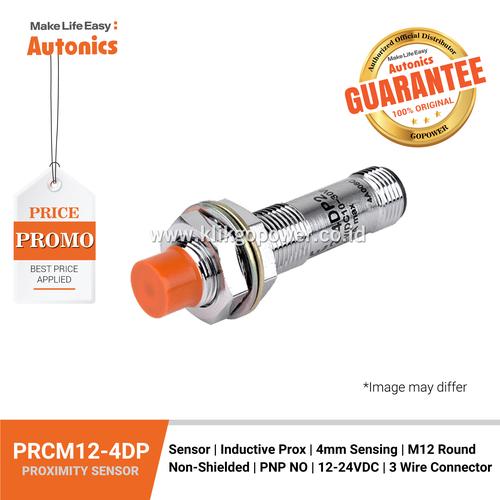

Autonics PROXIMITY SENSOR PRCM12-4DP
Rp346.800
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Autonics Proximity Sensor
Data sheet
Wire type and power: DC 3-wire type 12-24VDC
Sensing side diameter: M12
Sensing distance: 4mm
Installation: Non-shield(non-flush)
Standard sensing target: 12×12×1mm(iron)
Response frequency: 500Hz
Current specification: Current consumption: Max. 10mA
Control output: PNP Normally Open
Material: Brass(nickel plated)
Cable Standard/material: Standard connector
Protection structure: IP67
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 1.5V
Wire type and power: DC 3-wire type 12-24VDC
Sensing side diameter: M12
Sensing distance: 4mm
Installation: Non-shield(non-flush)
Standard sensing target: 12×12×1mm(iron)
Response frequency: 500Hz
Current specification: Current consumption: Max. 10mA
Control output: PNP Normally Open
Material: Brass(nickel plated)
Cable Standard/material: Standard connector
Protection structure: IP67
Body length: Standard type
Environment_Ambient temperature: -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance): Max. 10% of sensing distance
Residual voltage: Max. 1.5V
