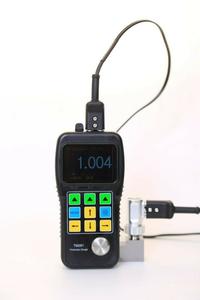

Ultrasonic thickness gauge TM281D with A&B Scan Thru-paint Range 0.02'

Display Type
2.4'' color OLED, 320×240 pixels, contrast 10,000:1
Operating Principle
Pulse echo with dual elemet transducers
Measuring Range
0.50mm to 508mm(0.02'' to 20.00''), depending on material, probe and surface condition
Measuring Resolution
Selectable 0.01mm, 0.1mm(selectable 0.001'', 0.01'')
Units
Inch or Millimeter
Rectify Mode
RF+, RF-, HALF+, HALF-, FULL
Display Mode
Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction
Automatic
Update Rate
Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range
500 to 9999m/s(0.0197 to 0.3939 in/μs)
Languages
English, French, German, Japanese,Chinese
Alarm Settings
Minimum and Maximum alarms. Range of 0.25mm to 508mm (0.010'' to 20.00''). Dynamic waveform color change on alarm
Power Requirements
2 AA size batteries
Operating Time
Approximately 40 hours
Instrument Shut-off
Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature
-10℃ to +50℃(+10°F to +12°F )
Size
156mm × 75mm × 38mm (H × W × D)
Weight
270g including batteries
