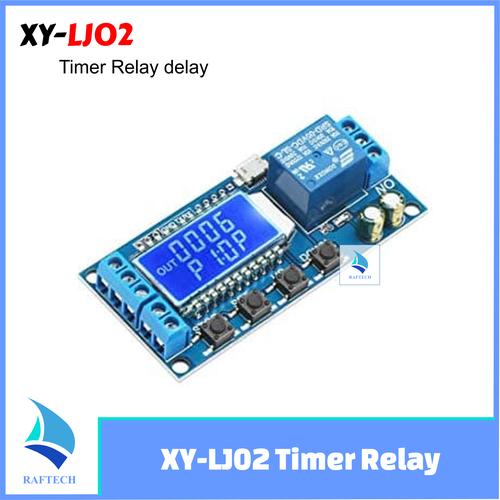

XY-LJ02 Timer Relay Delay Switch Module Input/Output Switch Time-delay

Ukuran : Panjang = 8cm Lebar = 4.8cm Tinggi = 1.9cm - PARAMETER ---- operating voltage range DC 6-30V (support micro USB 5V power supply, support high level trigger 3.0-34V, support low level trigger 0-0.2V); timing range 0.01s~9999min continuously adjustable. - LCD DISPLAY ---- current mode and parameter will be clear at a glance. INDEPANTANT PARAMETERS ---- OP/CL/LOP parameters can be changed and saved separately. - POWER-OFF STORAGE ---- all parameter will be stored automatically when powered off. - OTHER FEATURES ---- with STOP button; with reverse polarity protection; support UART data upload and parameter setting; sleep mode (wake up by any button).
