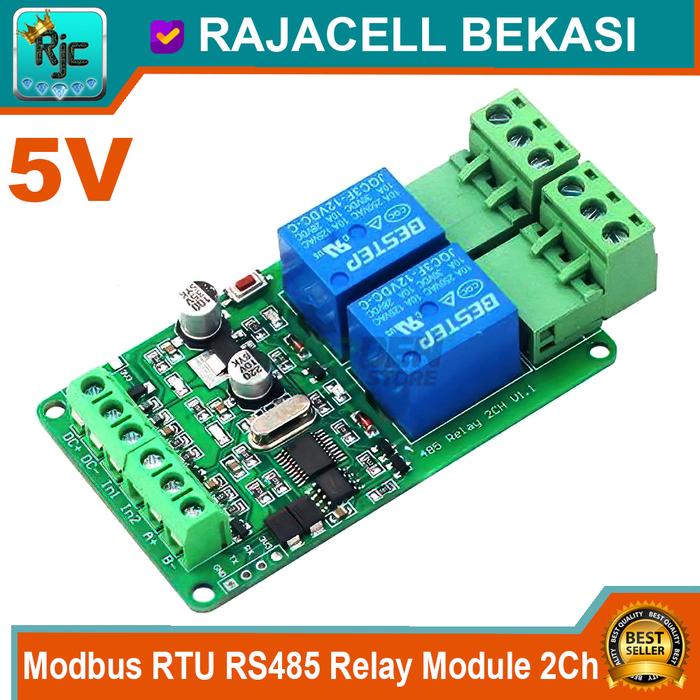

Modbus RTU RS485 Relay Module 5V 12V 1 2 4 8 Channel TTL Communication - 2 Channel, 12V
Rp81.700
Pilih warna: 2 Channel
Pilih ukuran: 12V
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: F - Module Relay dan SSR
Modbus RTU 12V 1/2/4/8 Channel Relay Output Board Switch Input RS485 TTL Communication Network Expansion Board Relay Module
Harga tertera untuk 1 unit sesuai varian yang dipilih. Tersedia varian
*1 Channel 5V
*1 Channel 12V
*2 Channel 5V
*2 Channel 12V
*4 Channel 5V
*4 Channel 12V
*8 Channel 5V
*8 Channel 12V
Feature :
1.This is a 1/2/4/8 Channel 12V Relay Output Board Module.
2.Easy to install.
3.Good quality, durable.
4.Portable design,easy to operate.
5.Low power, high precision,RS485 / TTL Communication.
6.1/2/4/8 channel optocoupler isolation.
Specifications:
1. RS485 communication interface
2. TTL communication interface
3. 1/2/4/8 channel optocoupler isolation
4. A user button
5. A user LED indicator
6. A power indicator
7. Power terminal interface (12V power supply)
8. 1 input
9. 1 output
10.DC power carrier (12V power supply)
11. Power terminal interface (12V power supply)
Arus kerja : -+20mA
*1ch : -+20mA
*2ch : -+40mA
*4ch : -+80mA
*8ch : -+160mA
Dimensi : 1ch 5v/12v = 82,26,17mm
2ch 5v/12v = 83,43,18mm
4ch 5v/12v = 77,77,17mm
8ch 5v/12v = 144,76,17mm
Modbus RTU instruction :
Baud rate: 9600 8 NONE 1
Hexadecimal transmission
Hexadecimal reception
Operation Steps:
1. Software selection communication baud rate 9600 fixed
2. Set the address (device address used for communication)
The default setting is 1 for the instruction.
3.RS485 and TTL serial port selection. When using RS485 communication, DI connects to TXD and RO connects to RXD; when using TTL communication, both DI and RO connect to NC
Disclaimer :
-Merk Relay bisa tidak sama dengan gambar, karena setiap bulan merk relay dari supplier bisa berubah-ubah namun kualitas dijamin sama.
