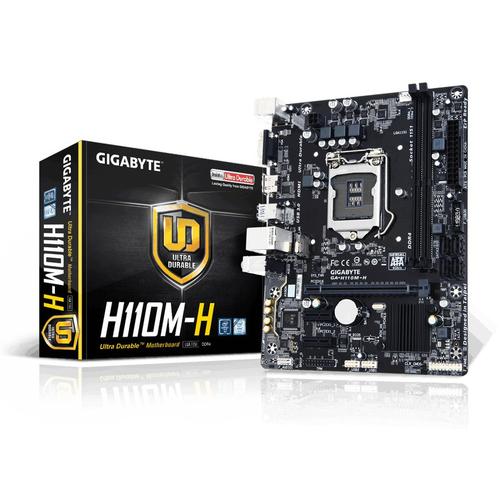

Gigabyte GA-H110M-H (LGA1151, H110, DDR4)

Supports 7th / 6th Generation Intel Core Processors
Dual Channel DDR4, 2 DIMMs
Audio Noise Guard with High Quality Audio Capacitors
HDMI 1.4, D-sub ports for multiple display
Realtek GbE LAN with cFosSpeed Internet Accelerator Software
All new GIGABYTE APP Center, simple and easy use
Support Intel Small Business Basics

Specification :
CPU
Support for 7th/6th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
* For 7th Generation Intel Core processors support need to update the latest BIOS.
L3 cache varies with CPU

Chipset
Intel H110 Express Chipset

Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400/2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 1024 MB

Audio
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

Operating System
Windows 10 64-bit (for 7th Generation Intel Processors)
Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors)

Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm

Garansi Resmi 3 Tahun Gigabyte Indonesia
