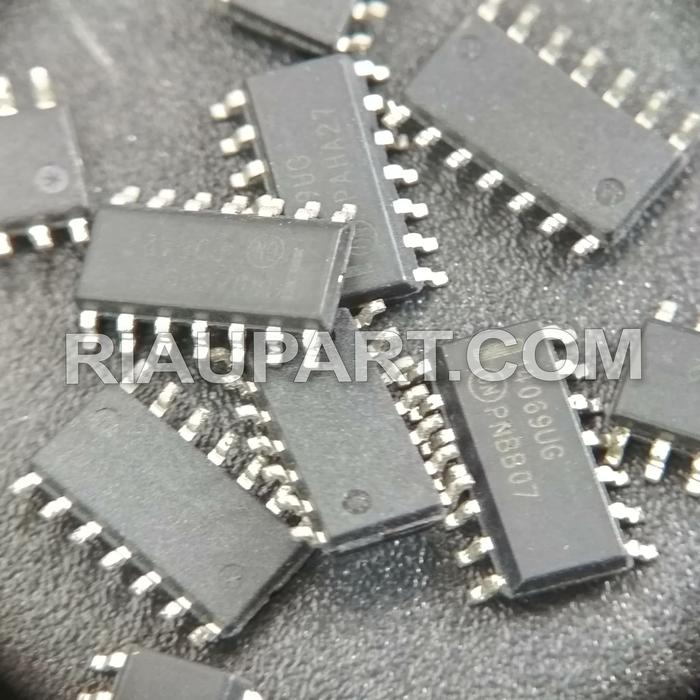

ORIGINAL IC INVERTER MC14069UBDR2G MC14069 MC14069UG 14069UG 14069

NEW ORIGINAL IC MC14069UBDR2G MC14069 MC14069UG 14069UG 14069 The MC14069UB hex inverter is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These inverters find primary use where low power dissipation and/or high noise immunity is desired. Each of the six inverters is a single stage to minimize propagation delays. Features • Supply Voltage Range = 3.0 Vdc to 18 Vdc • Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range • Triple Diode Protection on All Inputs • Pin−for−Pin Replacement for CD4069UB • Meets JEDEC UB Specifications • NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • These Devices are Pb−Free and are RoHS Compliant
